SHLD079-006-SKT-J-C - Datasheet
MBA
Category Information
Screws - Shoulder - Jig and FixtureJig and Fixture Shoulder Screws. Used in construction of tool, jig and fixture work. 4140L heat treated steel with black oxide finish.
- Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw

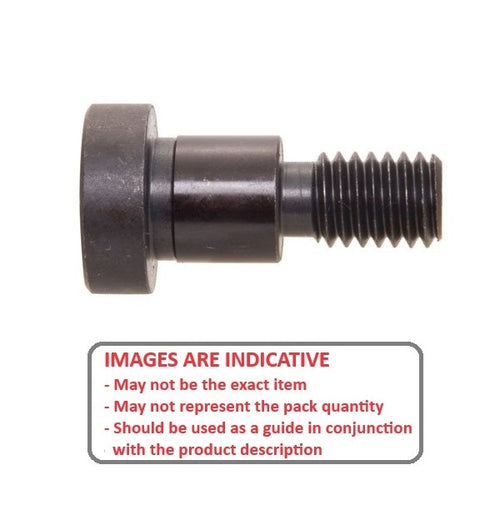

Product Data

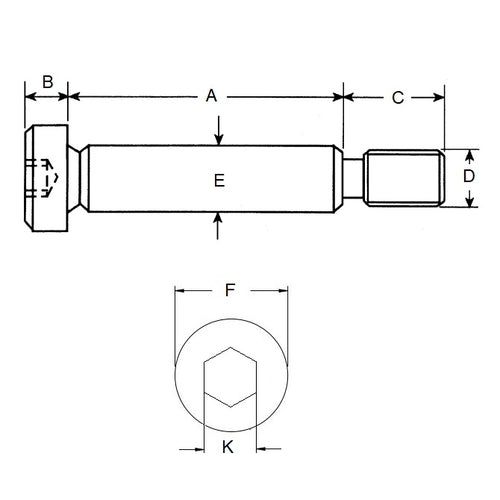

- Shoulder Diameter (E)
:
7.938
mm
- 0.051 / - 0.102
(Equiv. 0.313 in.) - Shoulder Length (A)
6.350
mm
(Equiv. 0.25 in.) - Thread (D) 1/4-20 UNC
- Max. Thread Length (C) 11.10 mm
- Head Height (B) 5.56 mm
- Head Diameter (F) 11.10 mm
- Hex Key Size 3.96 mm
- Material Steel 4140L Heat Treated
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- SS7
- SS-7
