RCL-079-104-Z - Datasheet
MBA
Category Information

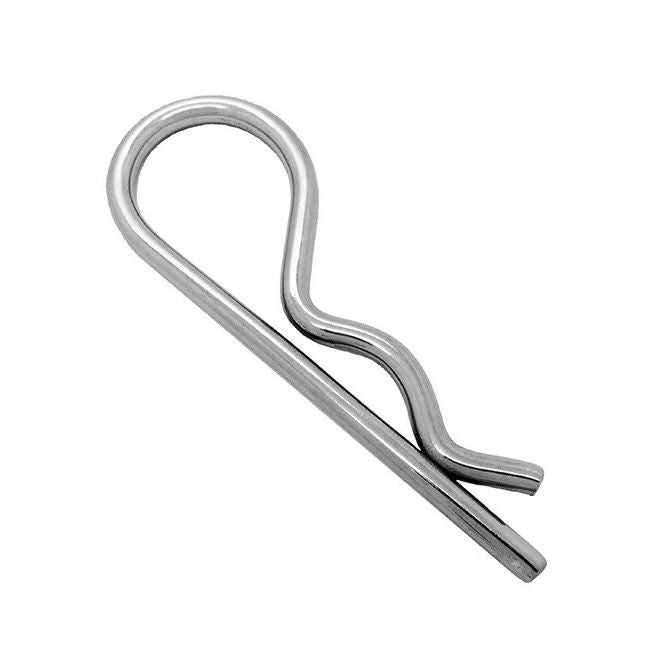

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data
- Wire Thickness (d)
:
7.90
mm
(Equiv. 0.311 in.) - Length (L)
104.0
mm
(Equiv. 4.094 in.) - Material Zinc Plated
- Drill Hole Size 8.33 mm
- Inside Eye Diameter (D) 22.23 mm
- Shaft Size Range 22.23 to 25.40 mm
- Approx. Bridge Length (D1) 45 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Hitech MSHPZP79
