KM079-130-6L30-ST - Datasheet
MBA
Category Information
Knobs - Lobe - Six Lobe - MaleMale Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 7.87 Unthreaded Hole

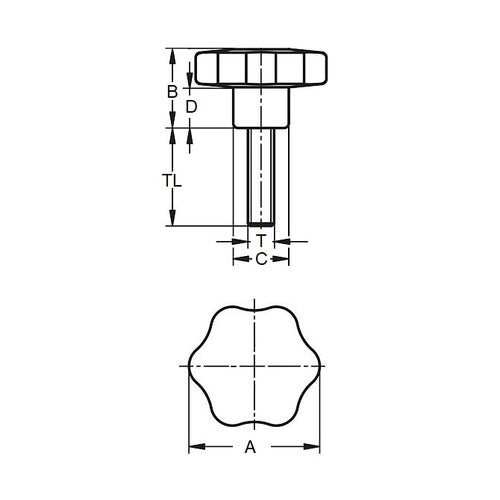

- Head Diameter (A)
130.05
mm
(Equiv. 5.12 in.) - Thread Length
30.0
mm
(Equiv. 1.181 in.) - Colour Black
- Hub Diameter (C) 39.88 mm
- Hub Length (D) 46.99 mm
- Knob Height (B) 65.02 mm
- Material Steel
