Miniature Bearings Australia
KF079-100-6L-ST - Datasheet
MBA
Category Information

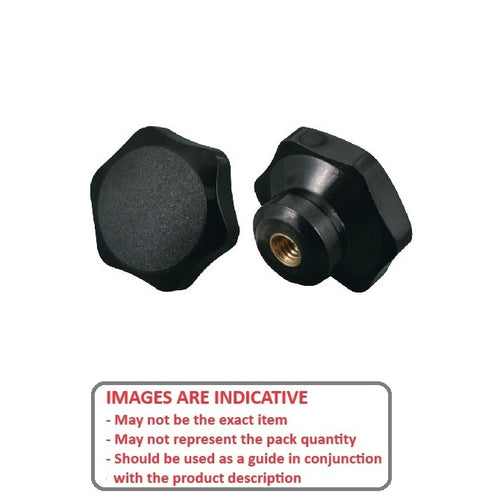

Knobs - Lobe - Six Lobe - Female - StandardStandard Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

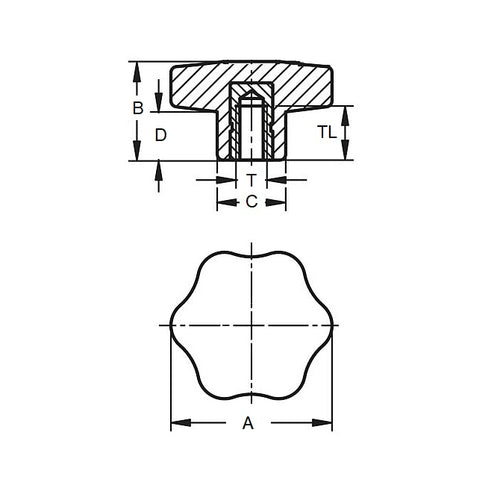

- Thread Size : 7.87 Unthreaded Hole
- Head Diameter (A)
100.08
mm
(Equiv. 3.94 in.) - Thread Length
31.0
mm
(Equiv. 1.22 in.) - Colour Black
- Hub Diameter (C) 36.07 mm
- Hub Length (F) 43.94 mm
- Knob Height (B) 50.04 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- KHN25
- KHN-25
