KLI-222C-318-32-SS - Datasheet
MBA
Category Information

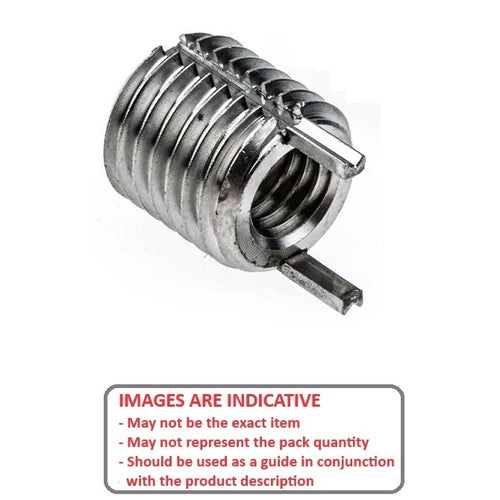

Thread Repair - Inserts - KeylockingKeylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.
- Steel or 303 Stainless Steel as indicated in the tables
- Maximum strength and reliability.
- Positive mechanical lock against rotation:.

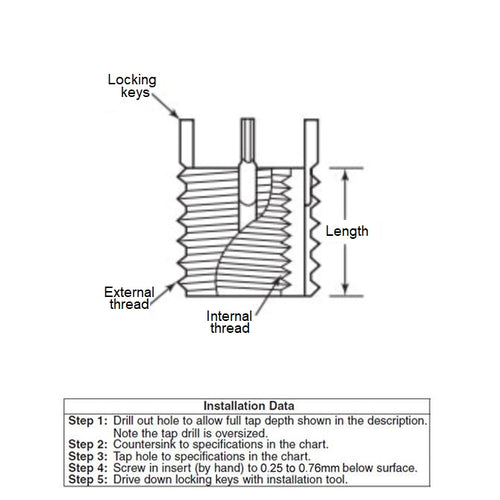

- The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
- Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.
Product Data
- Internal Thread : 7/8-9 UNC (22.23mm)
- External Thread 1.1/4-12 UNC
- Length
31.750
mm
(Equiv. 1.25 in.) - Tap Drill Diameter 27.00 mm
- Countersink Diameter 28.956 mm
- Locking Keys 4
- Tapped Hole Depth 36.576 mm
- Removal Drill Size 27.781 mm
- Removal Drill Depth 7.938 mm
- Installation Tool KLI-64710RS
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 91731A074
- KLI66310
- KLI-66310
