SK222C-064-SK-C - Datasheet
Brighton Best
Category Information

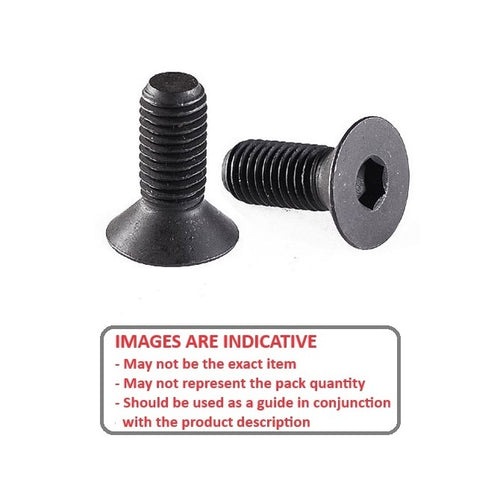

Screws - Countersunk - Socket - Steel - StandardStandard Steel Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC - Alloy Steel
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7991.
- Rc38-42
- ASTM F835 - alloy steel. ISO 10642.
- The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 7/8-9 UNC (22.23mm)
- Overall Length (L)
63.5
mm
+/- 2.55
(Equiv. 2.5 in.) - Material High Tensile Steel / Black Oxide
- Max Head Diameter 42.9 mm
- Max Head Height 11.9 mm
- Minimum Thread Length (l) Not Specified mm
- Hex Key (s) 14.29 (9/16) mm
- Countersunk Angle 82 °
- Pitch 2.822 mm
- Threads Per Inch 9 TPI
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 721302
- 91253A894
