AR206RS - Datasheet
MBA
Category Information

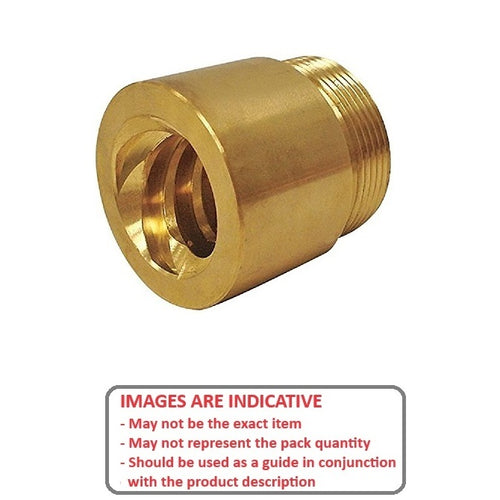

Leadscrew - Nuts - Imperial - Acme - BronzeBronze Acme Imperial Nuts Leadscrew. Acme Leadscrew Nuts - Use with Acme Leadscrew thread and flanges for mounting
- An expanded range may be available on special order. Please enquire.
- Nut only. Match with appropriate leadscrew.
Product Data

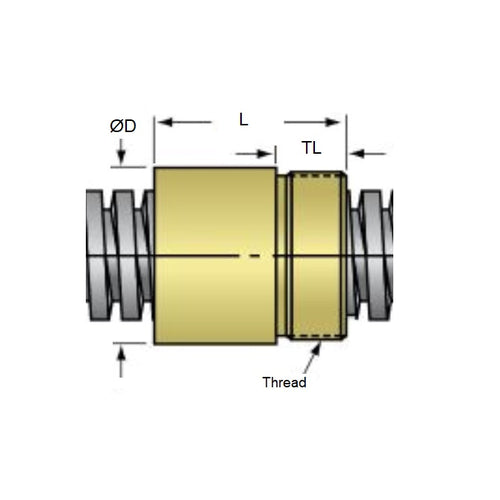

- Screw Outside Diameter
:
22.225
mm
(Equiv. 0.875 in.) - Number of Threads Per Inch 6
- Number of Starts 1
- External Nut Mounting Thread 1.3/8-16
- Direction Right Hand
- Overall Length 38.10 mm
- Thread Length 12.70 mm
- Nut Diameter 38.10 mm
- Material Bronze
Product Compliance and Data
Additional Resources
Cross References
- AR-206
- AR206
