DS-8RS - Datasheet
MBA
Category Information

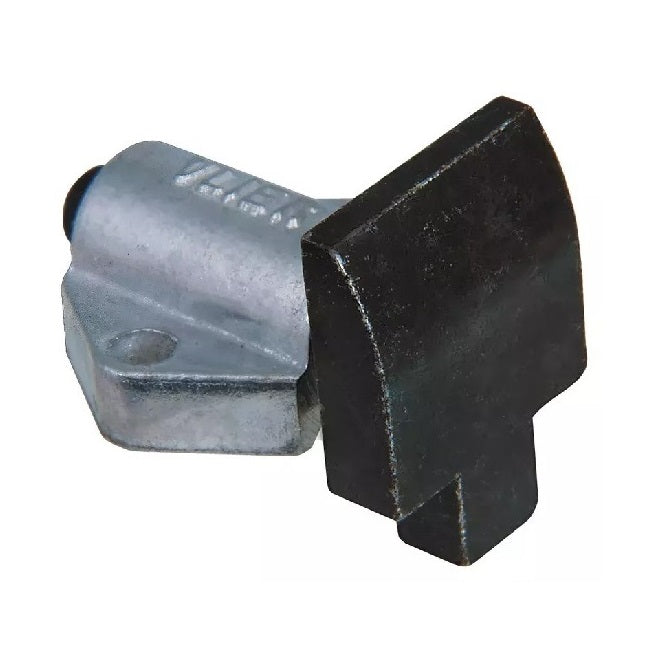

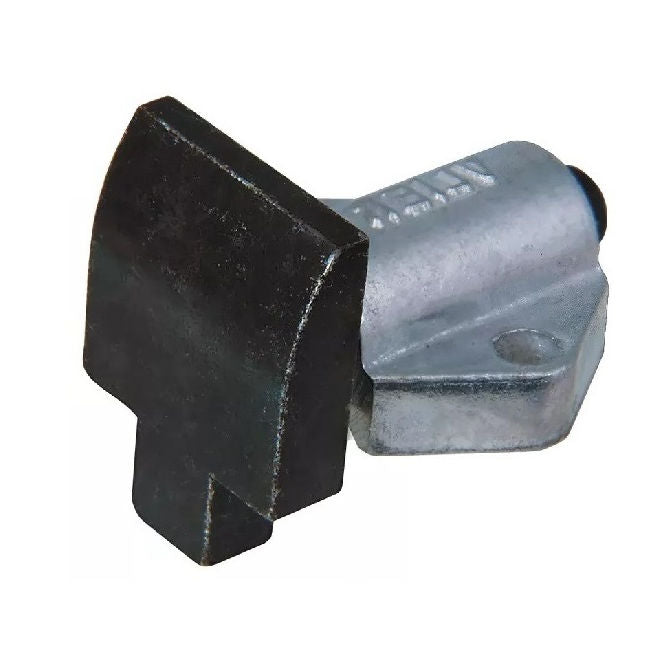

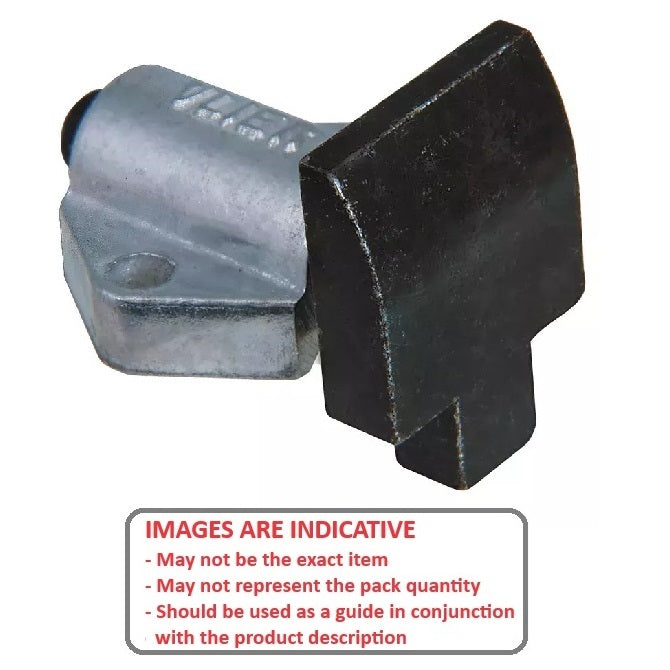

Stops - Spring - Flat Face - With TangWith Tang Flat Face Spring Stops. Flat faced with a tang prevents thin gauge material from sliding under plunger.
- Spring stops are used extensively in the locating of parts in jigs and fixtures, particularly where fixture walls are not available.
- Properly radiused nose for perfect fit with no wobble.
- Plunger is case hardened low carbon steel. Aluminium body.
Product Data
- Initial End Force : 7.48 Kg
- Final End Force 21.55 Kg
- Stroke
6.35
mm
(Equiv. 0.25 in.) - A 38.10 mm
- B 34.93 mm
- C 33.34 mm
- D 50.80 mm
- F 6.35 mm
- G 6.75 mm
- H 31.75 mm

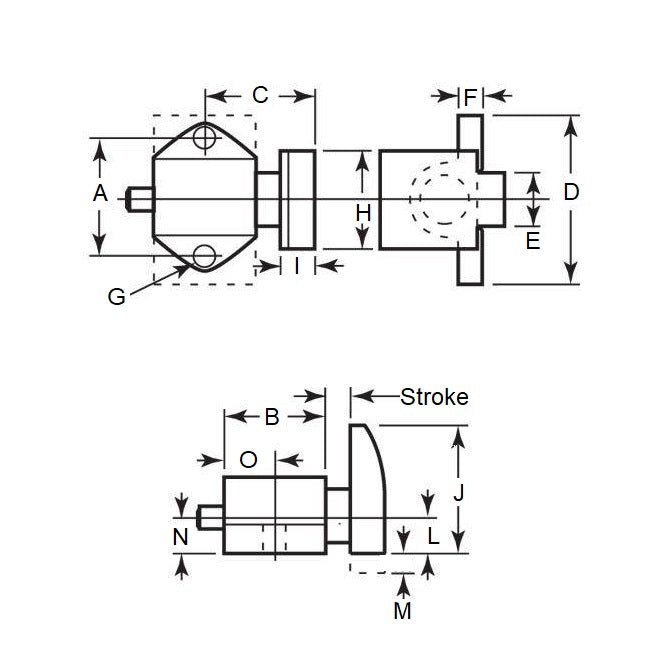

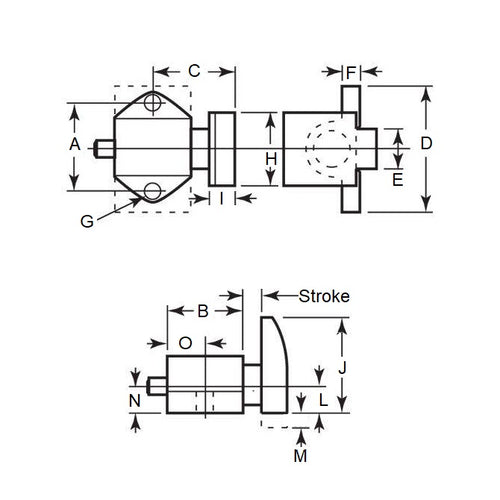

- E / I / J / L / M / N / O 12.70 / 9.53 / 31.75 / 10.72 / 6.35 / 11.11 / 17.46 mm
- Base Style Rectangular
