DS-3NRS - Datasheet
MBA
Category Information

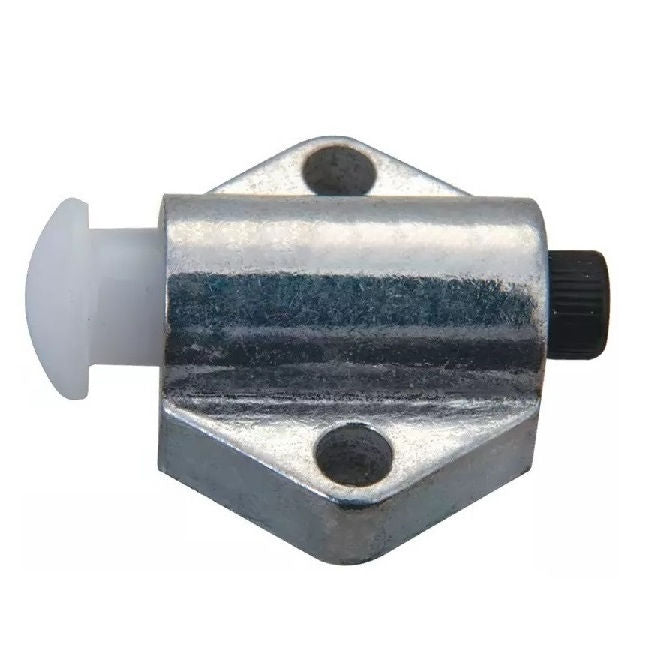

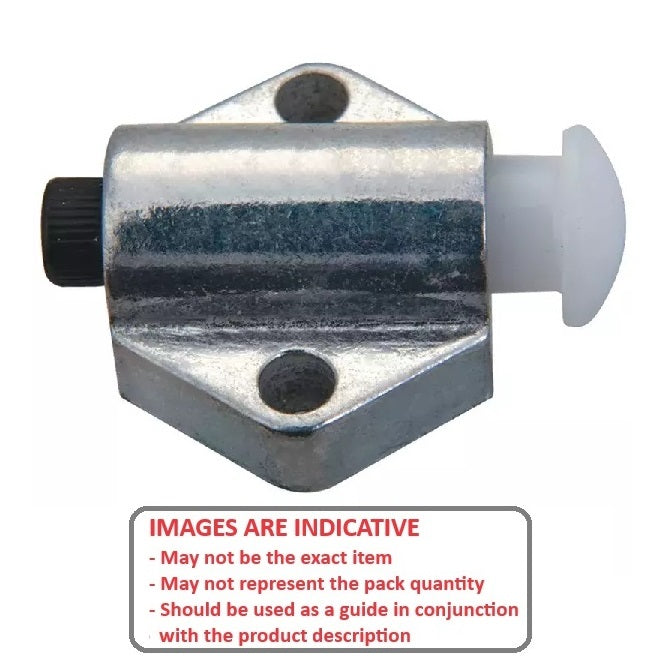

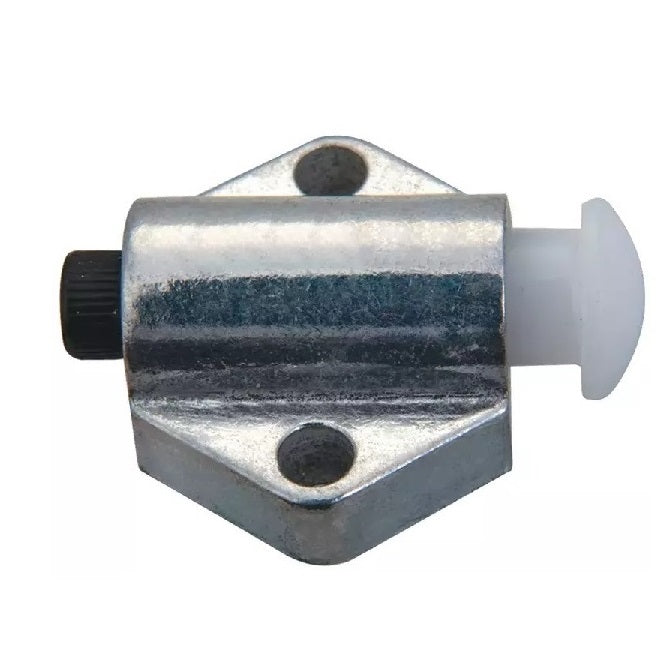

Stops - Spring - Round - Acetal NoseAcetal Nose Round Spring Stops. Round acetal nose selection.
- Spring stops are used extensively in the locating of parts in jigs and fixtures, particularly where fixture walls are not available.
- Properly radiused nose for perfect fit with no wobble.
- Plunger is case hardened low carbon steel. Aluminium body.
Product Data
- Initial End Force : 7.48 Kg
- Final End Force 21.55 Kg

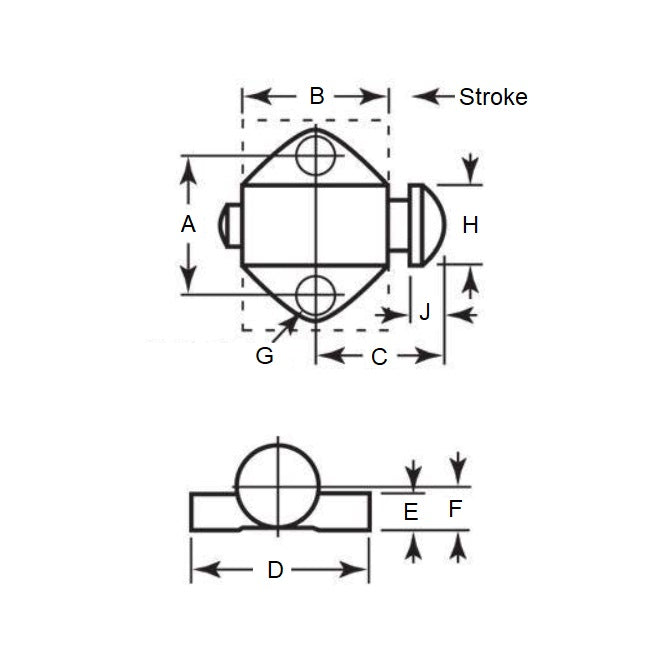

- A 38.10 mm
- B 34.93 mm
- C 30.96 mm
- D 50.80 mm
- F 11.11 mm
- G 6.75 mm
- H 20.64 mm
- E / J 6.35 /7.14 mm
- Base Style Retangular
