CS-0730-0215-10-S2-C - Datasheet
MBA
Category Information

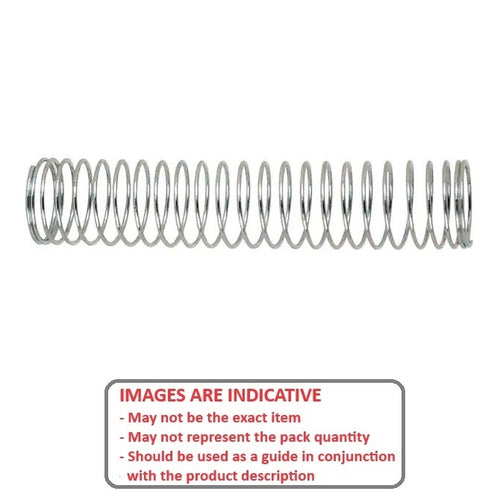

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Spring OD (D0)
:
7.30
mm
+/- 0.203
(Equiv. 0.287 in.) - Free Length (L0)
21.5
mm
+/- 0.64
(Equiv. 0.846 in.) - Wire Diameter (d)
1.00
mm
+/- 0.015
(Equiv. 0.039 in.) - Loaded Height (L1) 14.30 mm
- Load at L1 28.43 N
- Rate (P/f) 4.0 N/mm
- Solid Height (Sh) 14.30 mm
- Approx. ID 5.3 mm
- End Type Closed
- Max Rod Dia. (A) 4.94 mm
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- CD2192
