EZL-111C-159C-167-C - Datasheet
MBA
Category Information

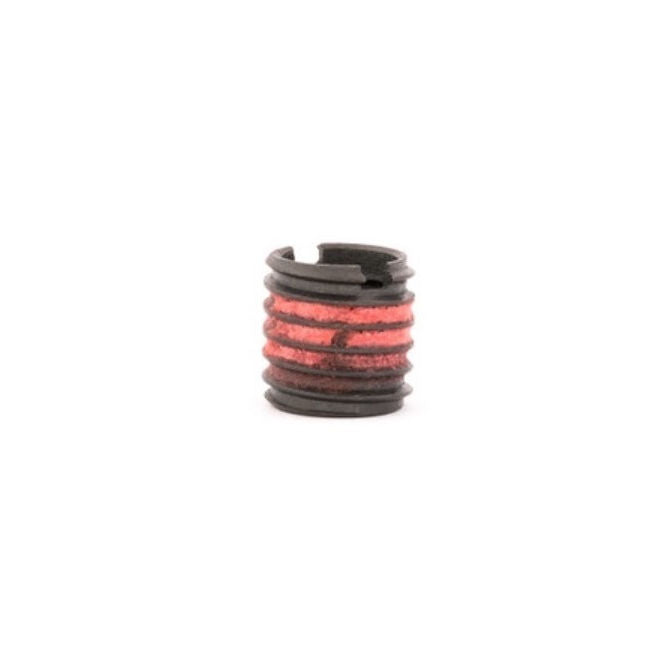

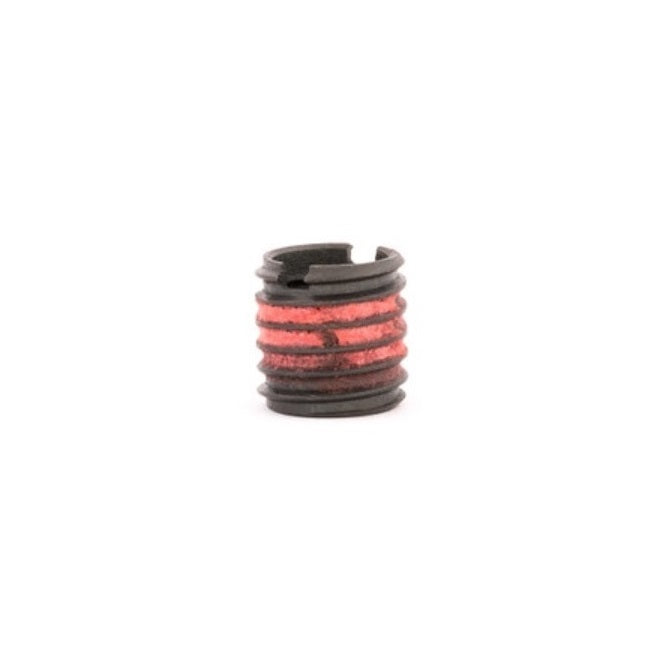

Thread Repair - Inserts - EZ-Lok - Solid Carbon SteelSolid Carbon Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required
- Install with a bolt and wrench
- Metric, UNC and UNF

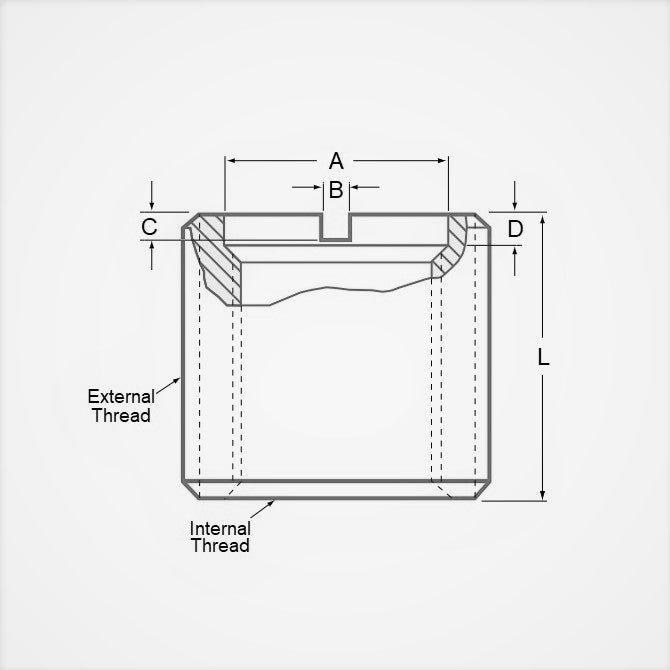

Product Data
- Internal Thread : 7/16-14 UNC (11.11mm)
- Length
16.66
mm
(Equiv. 0.656 in.) - External Tap Size 15.875mm (5/8-11 UNC)
- Tapping Hole Size 13.49 mm
- Drive Tool 500-6
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 329-7
- 90248A034
- 3297
