SK111C-038-SK-CZ - Datasheet
Brighton Best
Category Information

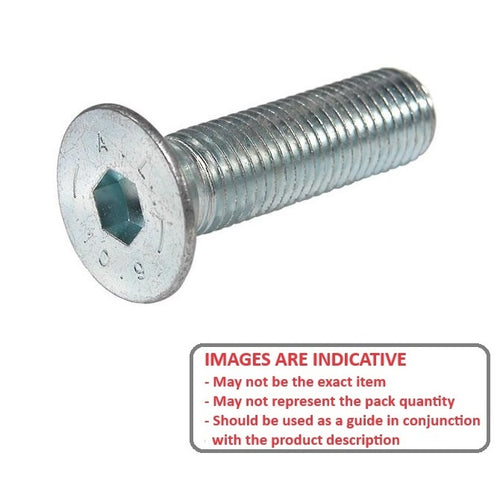

Screws - Countersunk - Socket - Steel - Zinc PlatedZinc Plated Steel Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7991.
- Rc38-42
- ASTM F835 - alloy steel. ISO 10642.
- The thread length indicated is the minimum. Some batches may be produced with longer threaded sections or even full threaded shanks.
Product Data
- Thread Size (C) : 7/16-14 UNC (11.11mm)
- Overall Length (L)
38.1
mm
+ 0.0 / - 1.55
(Equiv. 1.5 in.) - Material Zinc Plated Steel
- Max Head Diameter 21.4 mm
- Max Head Height 5.9 mm
- Minimum Thread Length (l) Not Specified mm
- Hex Key (s) 6.53 (1/4) mm
- Countersunk Angle 82 °
- Pitch 1.814 mm
- Threads Per Inch 14 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 875268
- 91263A785
