Miniature Bearings Australia
BL-00714-PTF - Datasheet
MBA
Category Information

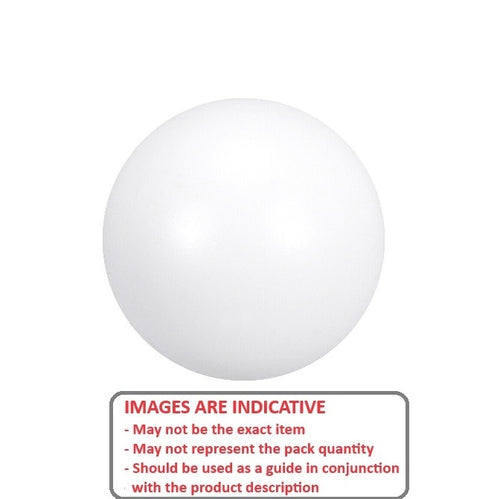

Balls - Plastic - PTFEPTFE Plastic Balls. No water absorption. Temperatures up to 288 Deg C. Not affected by any known acids or alkalies.
- Plastic ball grades are not the same as those for precision balls
- Polytetrafluoroethylene
- Unpolished.
- Specific Gravity: 2.3.
Product Data

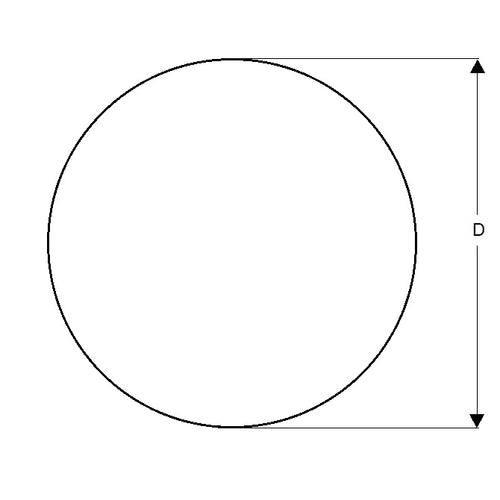

- Diameter (D)
:
7.14
mm
+/- 0.051
(Equiv. 0.281 in.) - Material PTFE
- Precision Grade 1
- Hardness 68 Rockwell R
- Properties No water absorption. Temperatures up to 288 Deg C.
- Colour White
- Specific Gravity 2.3
- Material PTFE
