VD-7RS - Datasheet

MBA

Category Information

Plungers - Ball Buttons

Ball Buttons Plungers. Also known as striker bushings or ball plunger detents. Use with ball or bolt spring plungers for a hard wearing contact area.

  • Burnished ground hardened steel.

Product Data

  • Suitable Ball Diameter (d) : 7.145 mm
    (Equiv. 0.281 in.)
  • Diameter (D) 11.120 mm
    (Equiv. 0.438 in.)
  • Length (L) 12.700 mm
    (Equiv. 0.5 in.)
  • Hole Diameter (d1) 6.121
  • Material Stainless Steel AISI 440C
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 33545A26
    View full details

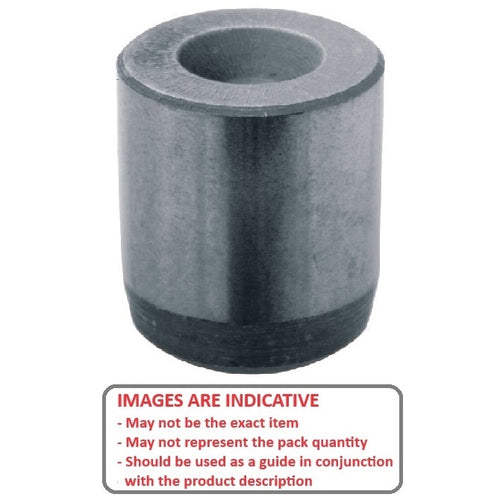

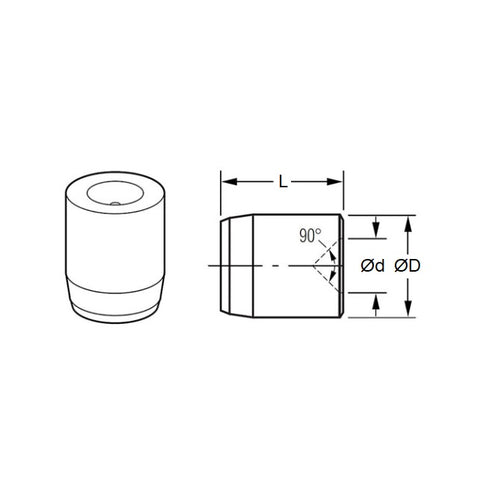

    VD-7RSDiagramVD-7RSImage
