SHLD070-006-SLL-C - Datasheet
MBA
Category Information

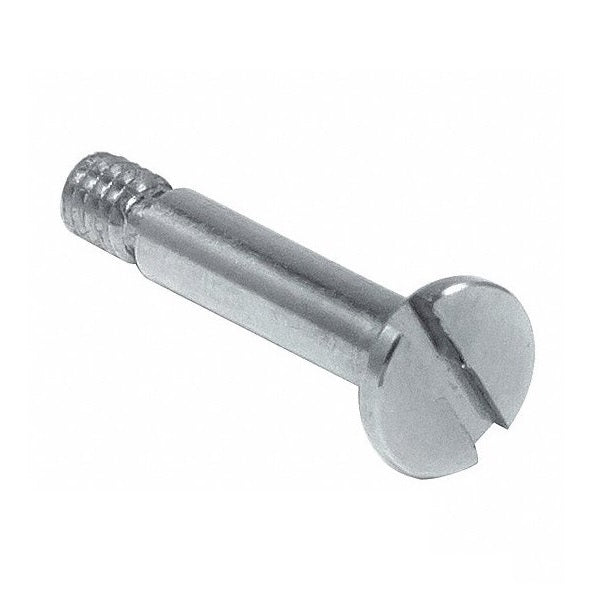

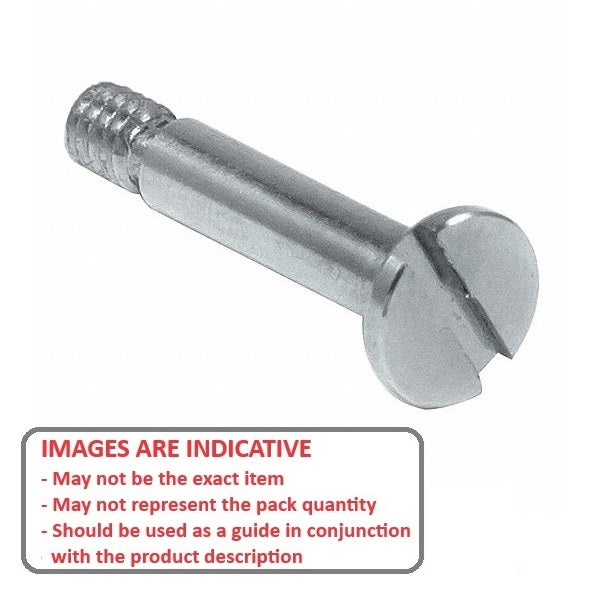

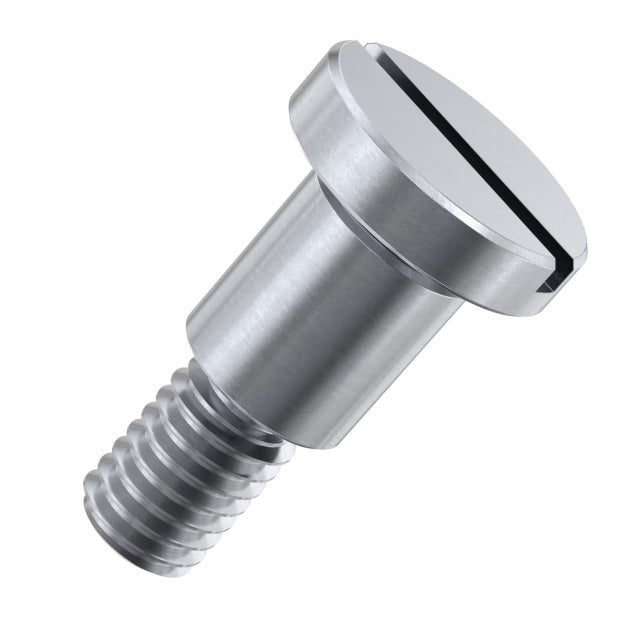

Screws - Shoulder - Slotted Shallow Head - Carbon SteelCarbon Steel Slotted Shallow Head Shoulder Screws. Hardened
- Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
Product Data
- Shoulder Diameter (E)
:
7.000
mm
(Equiv. 0.276 in.) - Shoulder Length (A)
6.000
mm
(Equiv. 0.236 in.) - Thread (D) M5x0.8
- Max. Thread Length (S) 7.00 mm
- Head Height (H) 2.70 mm
- Head Diameter (D) 11.00 mm
- Slotted Drive
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 97505A121
- MD0923MCO05X006
