RCL-070-152-ZD - Datasheet
MBA
Category Information

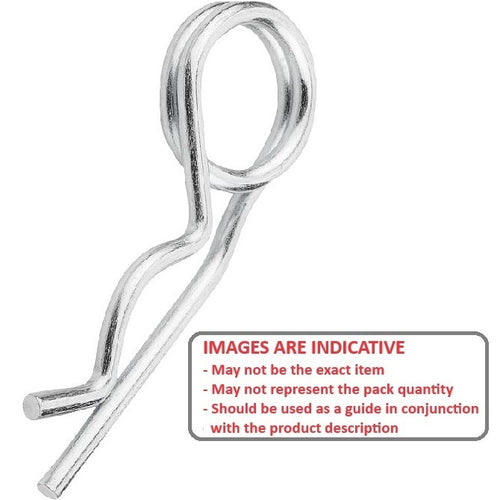

R Clips - Double Coil - SteelSteel Double Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- Material: Spring Wire
Product Data

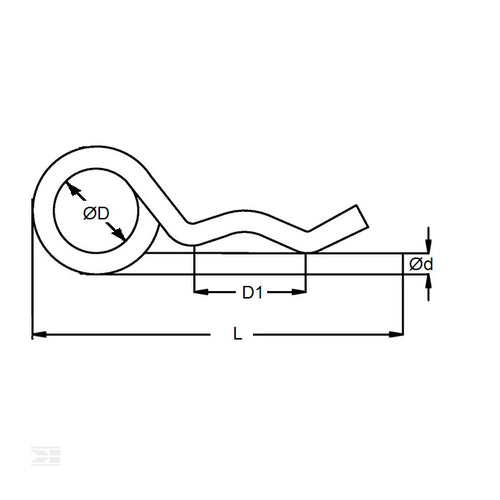

- Wire Thickness (d)
:
7.00
mm
(Equiv. 0.276 in.) - Length (L)
152.0
mm
(Equiv. 5.984 in.) - Material Zinc Plated
- Drill Hole Size 8.00 mm
- Inside Eye Diameter (D) 30.00 mm
- Shaft Size Range 26.00 to 40.00 mm
- Approx. Bridge Length (D1) 48 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- RPD7-130
- RPD7130
