RCL-070-104-Z - Datasheet
MBA
Category Information

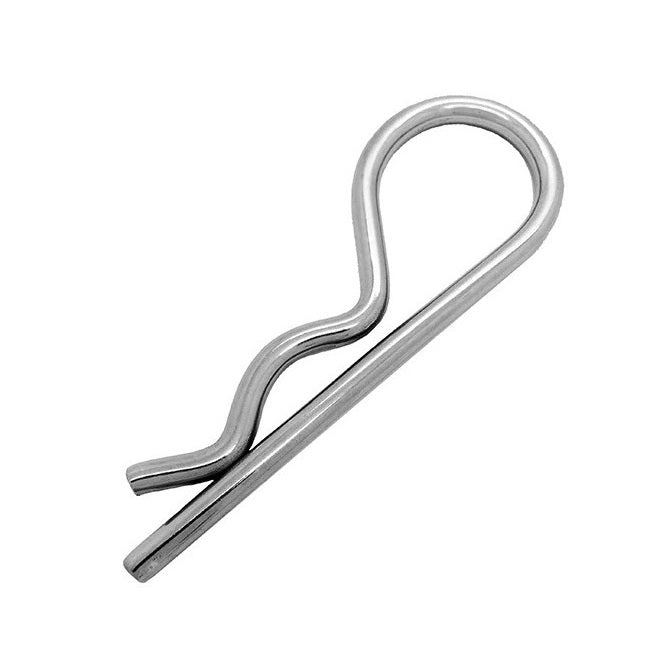

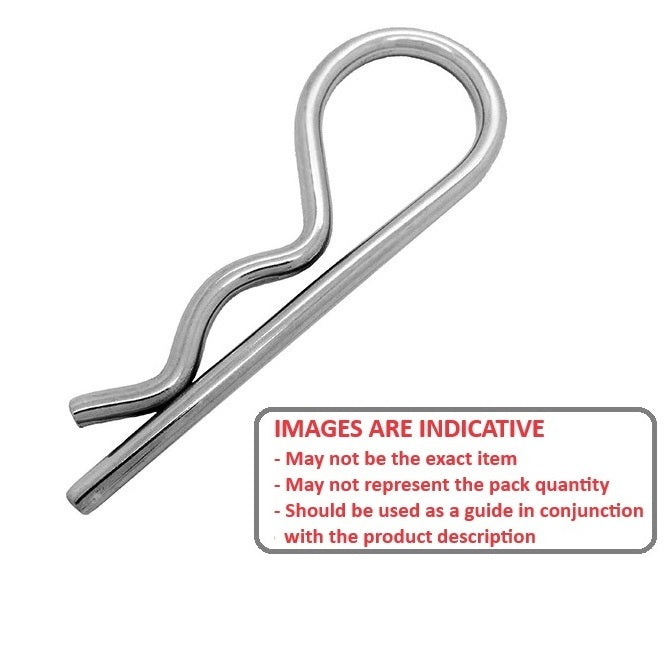

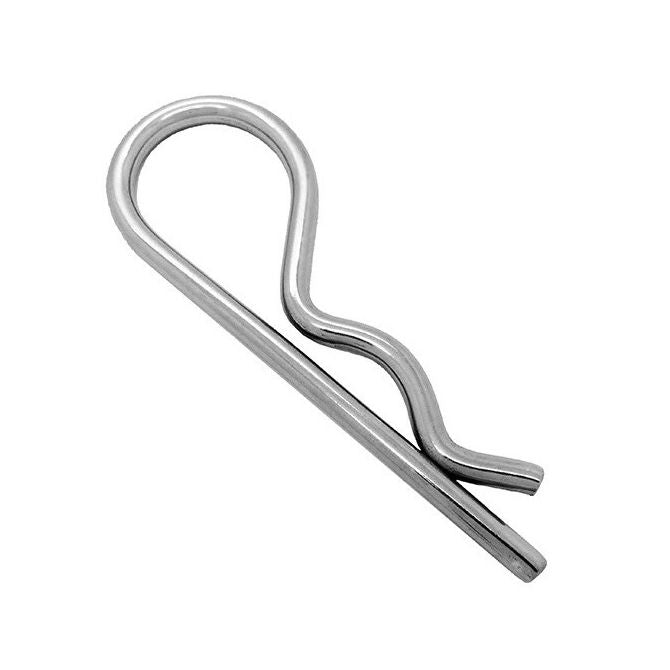

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data

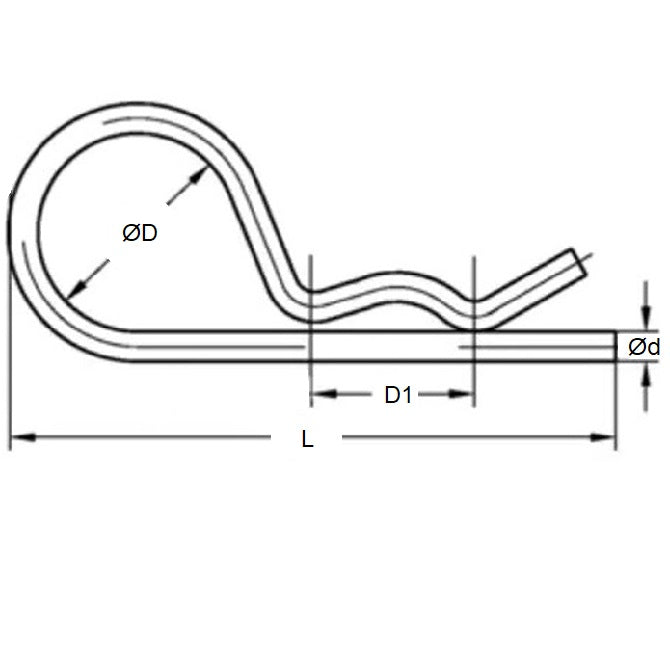

- Wire Thickness (d)
:
7.00
mm
(Equiv. 0.276 in.) - Length (L)
104.0
mm
(Equiv. 4.094 in.) - Material Zinc Plated
- Drill Hole Size 7.54 mm
- Inside Eye Diameter (D) 22.23 mm
- Shaft Size Range 19.05 to 25.40 mm
- Approx. Bridge Length (D1) 45 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Hitech MSHPZP7
