Miniature Bearings Australia
W0060-T-010-016-L-S4 - Datasheet
MBA
Category Information

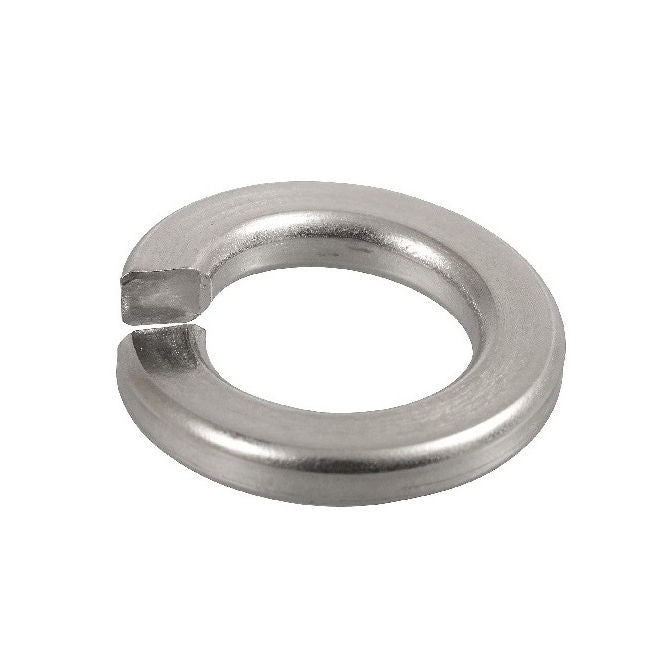

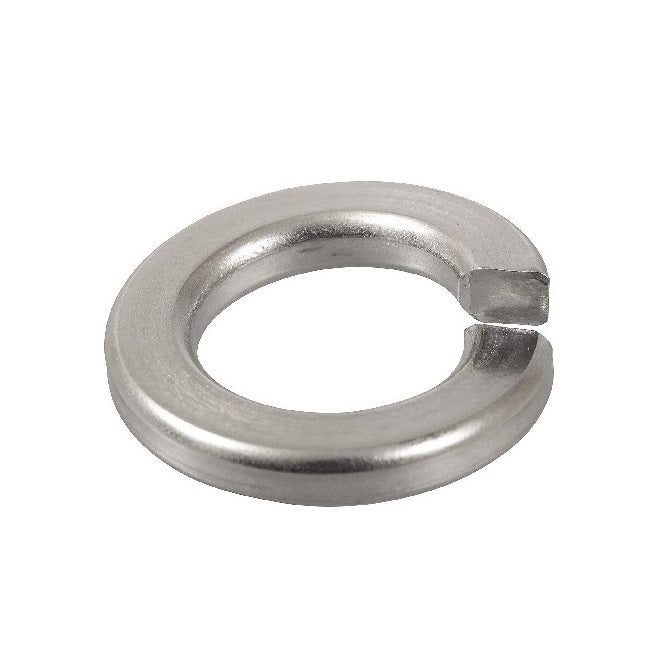

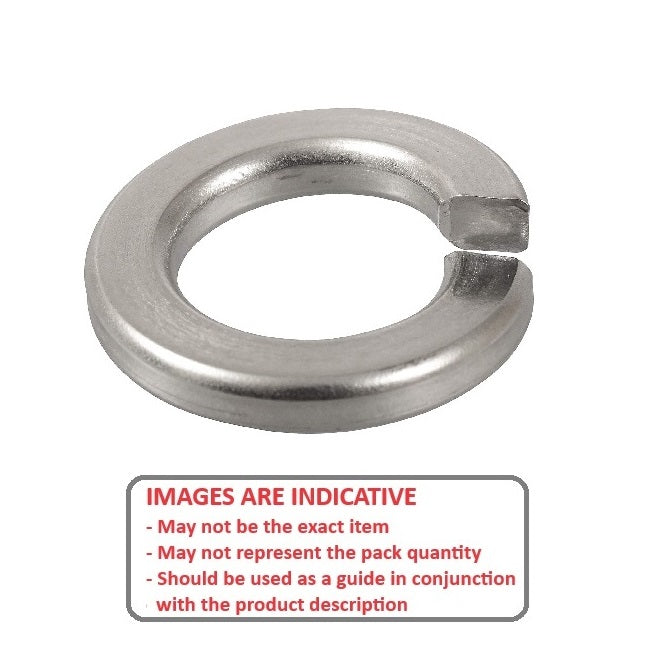

Washers - Lock - Split - Stainless SteelStainless Steel Split Lock Washers. Split type. 304 stainless steel selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

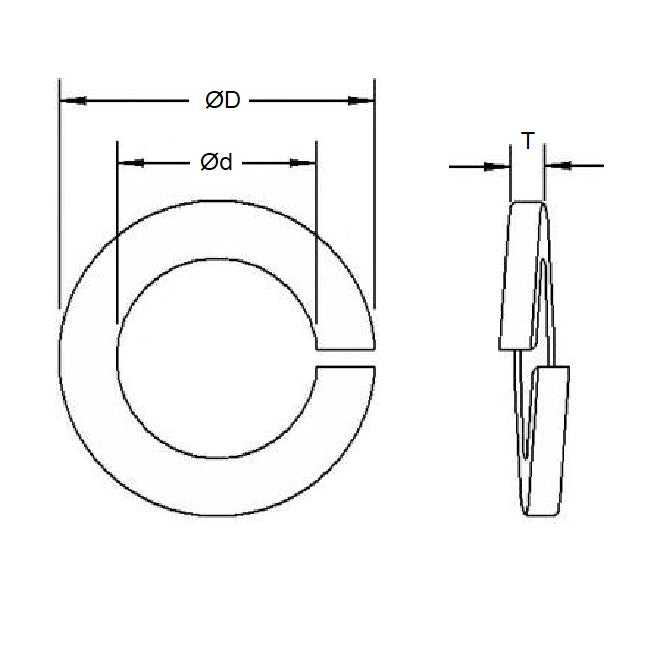

- Nominal Inside Diameter
:
6.00
mm
+ 0.4 / - 0.0
(Equiv. 0.236 in.) - Outside Diameter
9.9
mm
(Equiv. 0.39 in.) - Thickness
1.60
mm
(Equiv. 0.063 in.) - Info 304 Stainless
- Info M6
- Info DIN 7980
- Actual ID (Ref) 6.1 mm
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- 91111A129
- MD7980MXO060
