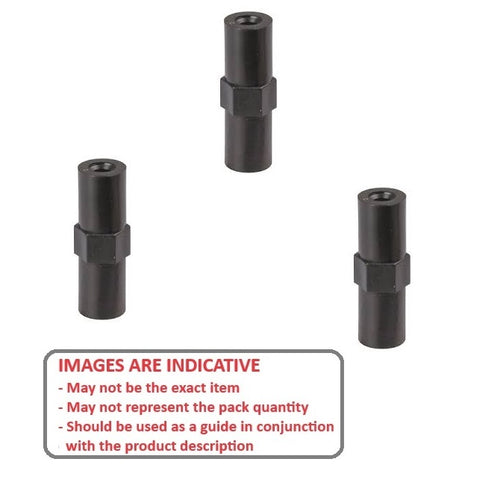

SHX-B-0600-08-020-N-PK5 - Datasheet
MBA
Category Information
Spacers - PCBPCB Spacers. Spacers for printed circuit boards
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
- These spacers have a hex in the centre to allow for holding with a spanner whilst tightening.
- Fix using a 6 or 8 gauge self tapping screw.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

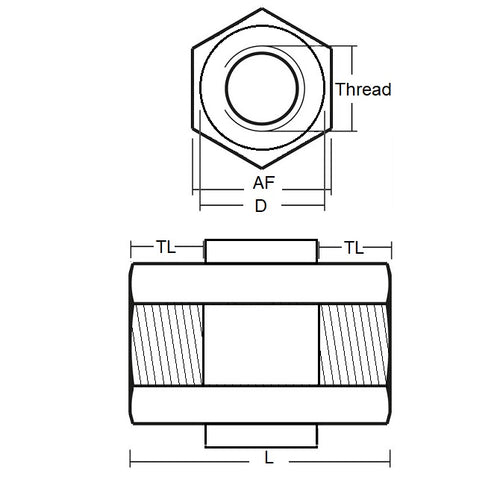

- ID (d)
:
6.0
mm
(Equiv. 0.236 in.) - OD (D)
7.7
mm
(Equiv. 0.303 in.) - Length (L)
12.0
mm
(Equiv. 0.472 in.) - A/F 8.2 mm
- Quantity Per Card 5
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- Jaycar HP0982
