K-0600-0600-3200A-4 - Datasheet
ExaktKey
Category Information

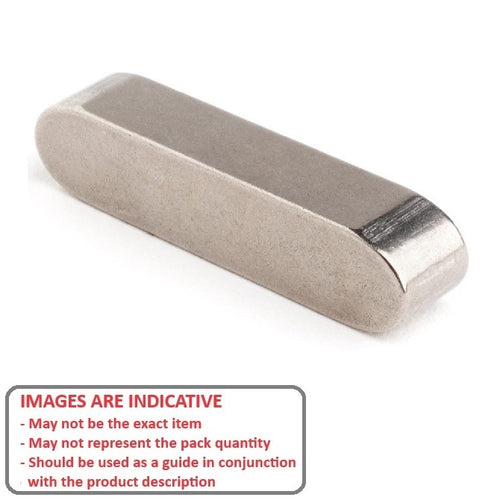

Keys - Machine - Stainless SteelStainless Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
6.00
mm
+ 0 / - 0.030
(Equiv. 0.236 in.) - Height (h)
6.00
mm
+ 0 / - 0.030
(Equiv. 0.236 in.) - Length (L)
32.00
mm
+ / - 0.25
(Equiv. 1.26 in.) - Finish Plain
- Tolerance Type Standard Undersized
- End Type A (Rounded Ends)
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor 720606-032
- 720606032
