K-0800-0700-8000A-4 - Datasheet

ExaktKey

Category Information

Keys - Machine - Stainless Steel

Stainless Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885

An expanded range may be available on special order. Please enquire.

Product Data

Width (W) : 8.00 mm _{+ 0 / - 0.051}
(Equiv. 0.315 in.)
Height (h) 7.00 mm _{+ 0 / - 0.051}
(Equiv. 0.276 in.)
Length (L) 80.00 mm _{+ / - 0.25}
(Equiv. 3.15 in.)
Finish Plain
Tolerance Type Standard Undersized
End Type A (Rounded Ends)
Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Country of Origin: US

Product Compliance and Data

Additional Resources

Keysteel Catalogue PDF

View full details

K-0800-0700-8000A-4Diagram

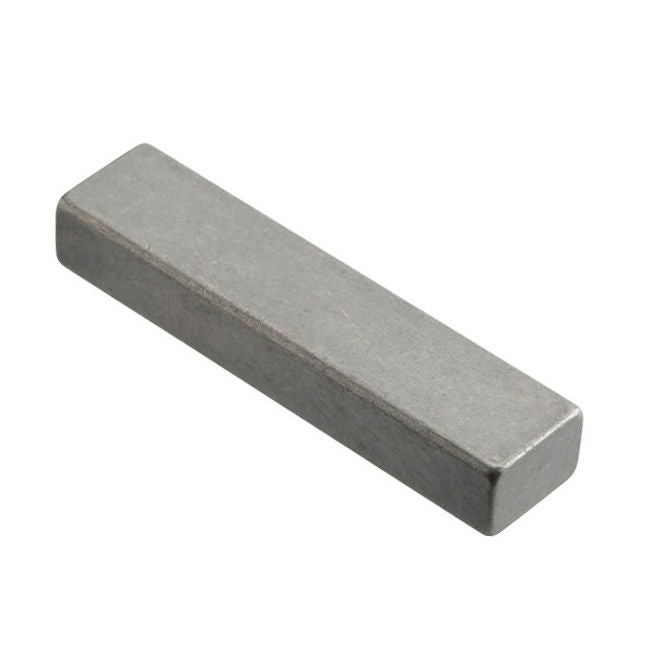

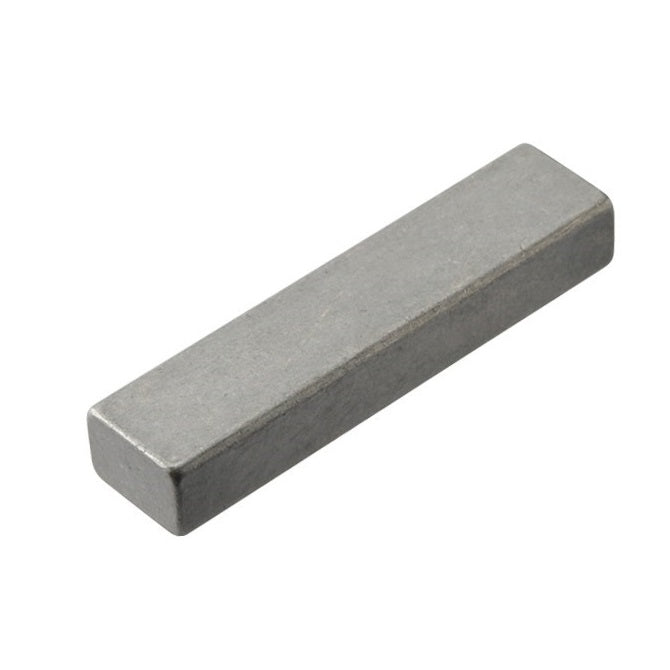

K-0800-0700-8000A-4Image
