K-0600-0600-3000A-6 - Datasheet
ExaktKey
Category Information

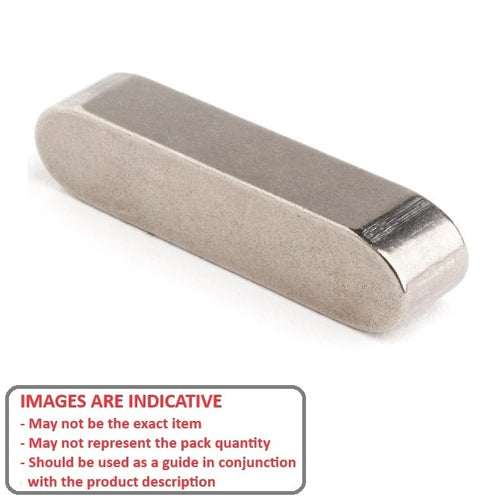

Keys - Machine - Stainless SteelStainless Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
6.00
mm
+ 0 / - 0.030
(Equiv. 0.236 in.) - Height (h)
6.00
mm
+ 0 / - 0.030
(Equiv. 0.236 in.) - Length (L)
30.00
mm
+ / - 0.25
(Equiv. 1.181 in.) - Tolerance Type Standard Undersized
- End Type A (Rounded Ends)
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 96717A221
- KK630SS
- KK6-30SS
