PLIT-060-120-150-52-KP-C - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Steel - Standard

Standard Steel Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M12x1.5 (Fine)
    • Overall Length (A) 51.7 mm
      (Equiv. 2.035 in.)
    • Initial End Force 6.4 N
    • Final End Force 2.7 N
    • Tip Diameter (C) 6.0 mm
    • Tip Length (D) 6.0 mm
    • Hex Height (F) 8.0 mm
    • Knob Diameter (J) 25.0 mm
    • Hex Size (K) 14.0
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP511
      • KBP-511
      View full details

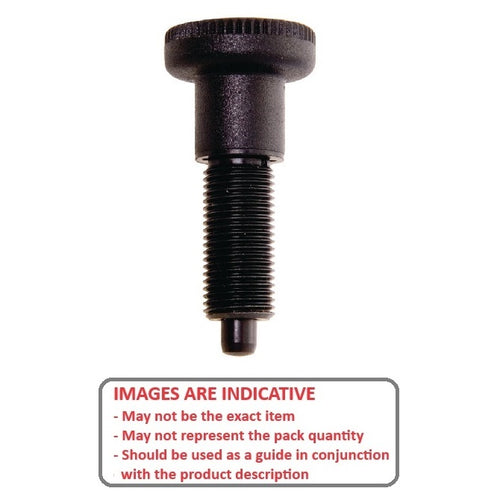

      PLIT-060-120-150-52-KP-CDiagramPLIT-060-120-150-52-KP-CImage
