ECL-0050-0060-C - Datasheet
MBA
Category Information

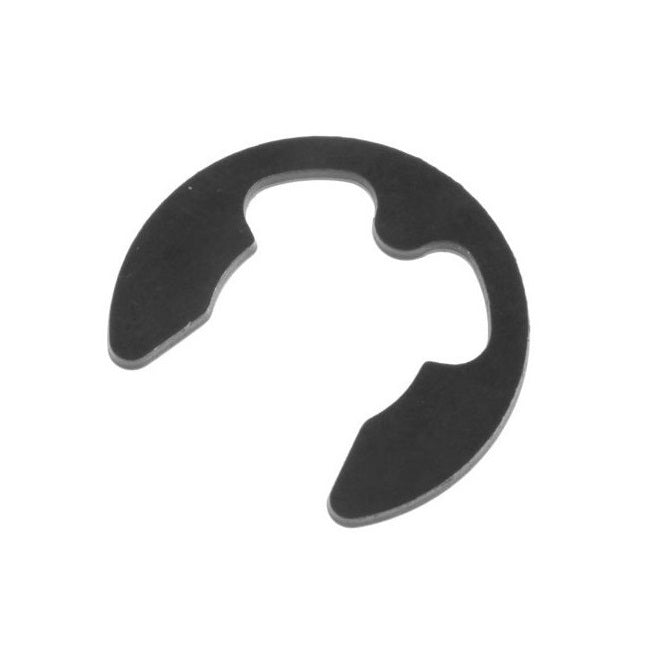

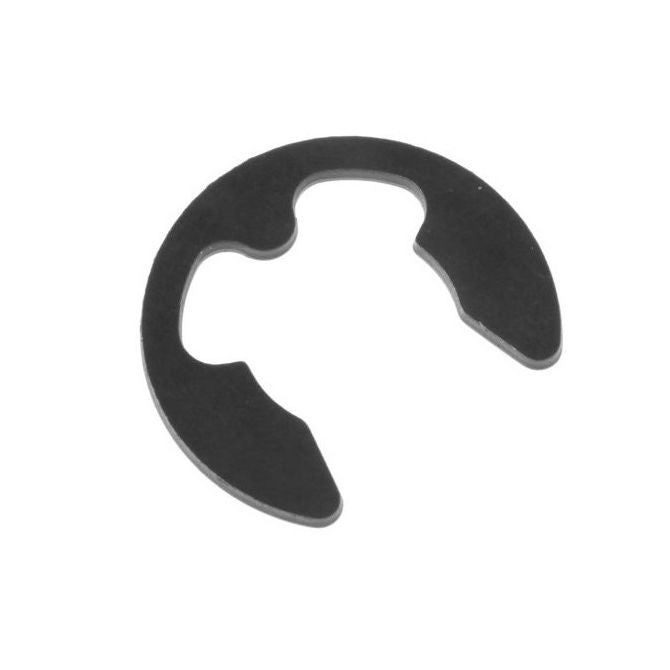

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data

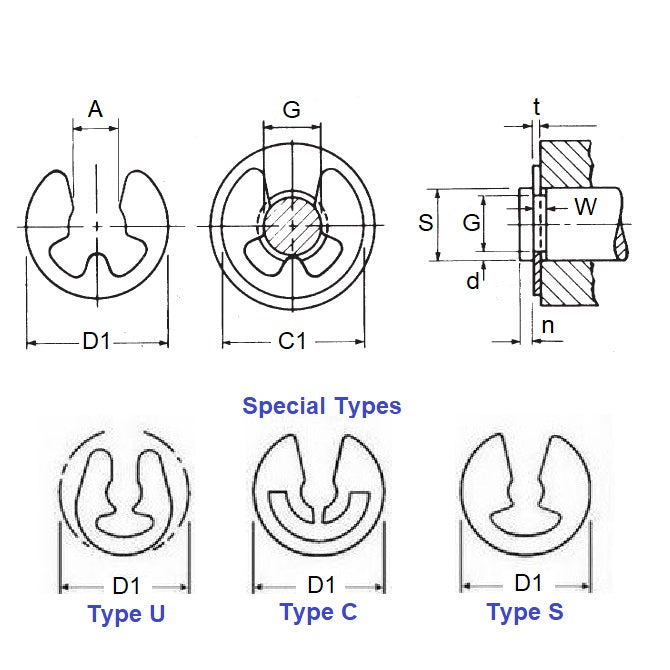

- Minimum Rec. Shaft Dia (S)
:
6.00
mm
+ 2.00 / - 0.00
(Equiv. 0.236 in.) - Groove Dia. (Dg)
5.00
mm
+ 0.00 / - 0.075
(Equiv. 0.197 in.) - Clip Thickness (T)
0.70
mm
+/ - 0.02
(Equiv. 0.028 in.) - Clip OD Loose (D1) 10.75 mm
- Groove Width (W) 0.74 mm
- Maximum Rec. Shaft Dia (S) 8.00
- Clip OD in groove (C1) 11.30 mm
- Loose Clip ID (A) 4.11 mm
- Min. Extension (n) 1.20
- Additional Info RRA-605 Applicator
- Standard DIN6799
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- ATA 140-310175
- ATA 170.474006.03
- 98543A113
- NoCor DE-050
- Cirteq RA5.0
- 140310175
- 1500-0050
- 15000050
- D1500-0050
- D15000050
- DE050
