LYP-Q2-060-055-CZ - Datasheet
MBA
Category Information

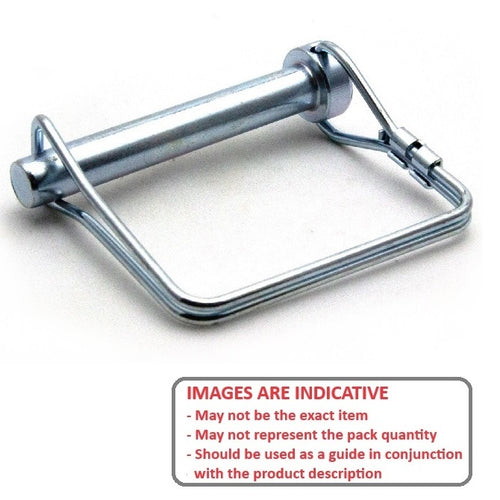

Pins - Wire Lock Lynch - Double Wire - Square - Carbon SteelCarbon Steel Square Double Wire Wire Lock Lynch Pins. Also known as snapper pins
Product Data

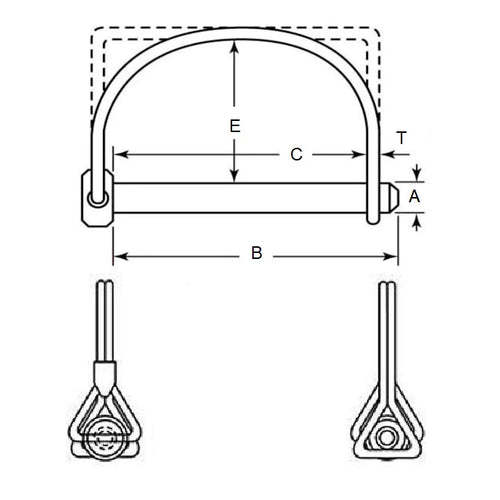

- Pin Diameter (A)
:
6.00
mm
- 0.051 / - 0.178
(Equiv. 0.236 in.) - Grip Length (C)
55.00
mm
+ 0.00 / - 6.35
(Equiv. 2.165 in.) - Wire Thickness (T)
2.1
mm
(Equiv. 0.083 in.) - Clearance To Wire (E) 37.0 mm
- Pin Length (B) 65.0 mm
- Finish Zinc Plated
- Material Carbon Steel Spring Wire Zinc Plated
