PSP-060-035-C - Datasheet
MBA
Category Information

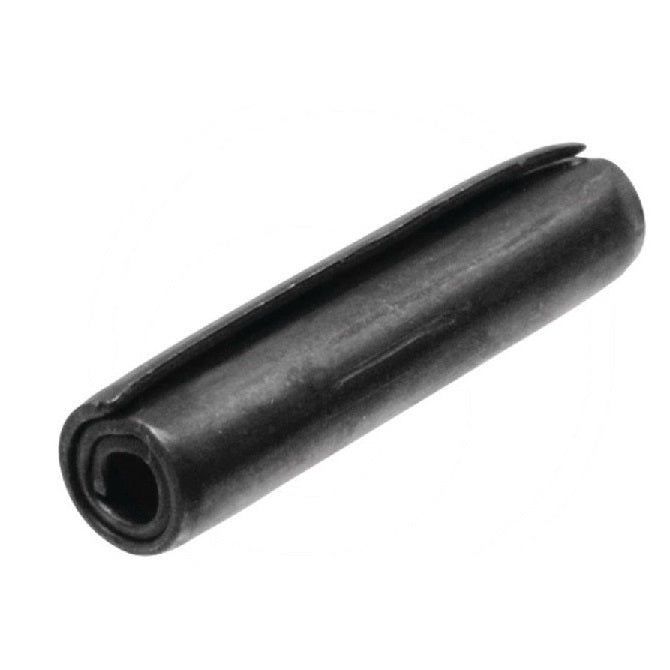

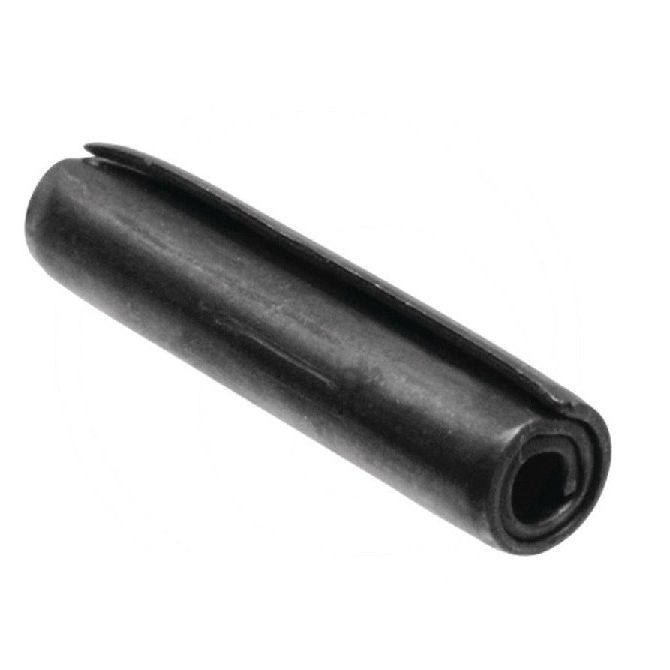

Pins - Coiled - Steel - Standard DutyStandard Duty Steel Coiled Pins. ASME B18.8.3M / ISO 8750 Standard Duty Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
6.00
mm
(Equiv. 0.236 in.) - Length
35.00
mm
+/- 0.50
(Equiv. 1.378 in.) - Drill Size
6.00 - 6.15
mm
(Equiv. 0.236 in.) - Loose Diameter 6.25 - 6.50 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness RC 46-53 (HV 420 to 545)
- Double Shear Strength Min. 22 Kn
- Material High Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 91612A855
- SEP6-35
- SEP635
