KW-060-250-C - Datasheet
ExaktKey
Category Information

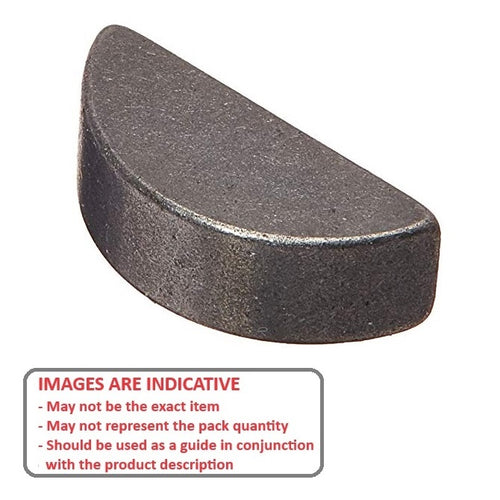

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

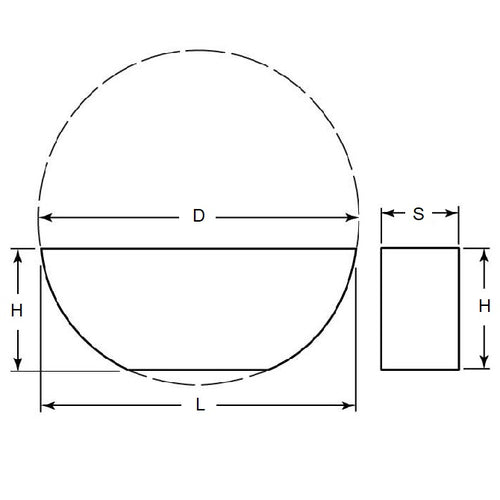

- Thickness (S)
:
6.00
mm
+/- 0.025
(Equiv. 0.236 in.) - Basis Diameter (D)
25.00
mm
+/- 0.250
(Equiv. 0.984 in.) - Approx. Height (H)
10.0
mm
(Equiv. 0.394 in.) - Approx. Length (L) 24.49 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- 98490A270
- A9C49M06025
- KU6-25
- KU625
