Miniature Bearings Australia
RP060-0240-4 - Datasheet
MBA
Category Information

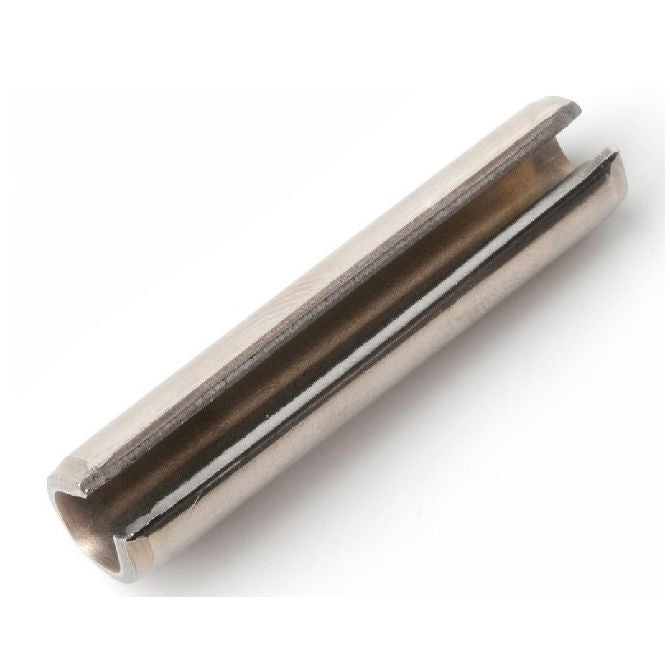

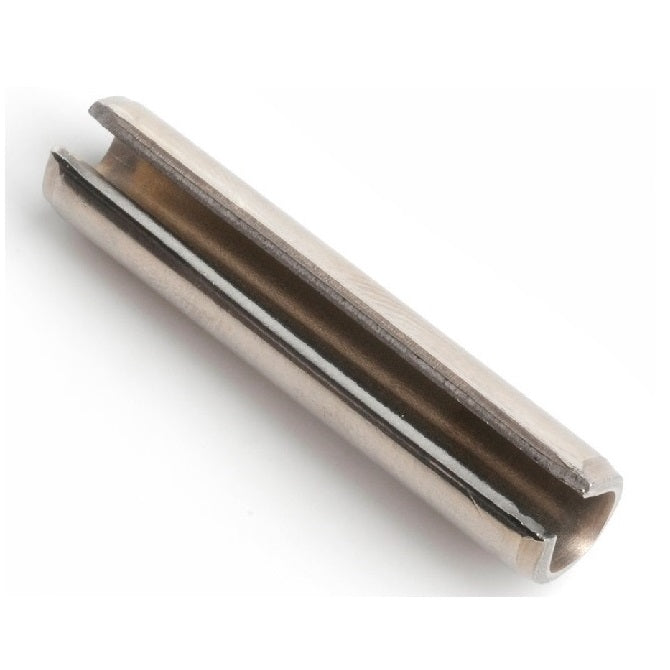

Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
6.00
mm
(Equiv. 0.236 in.) - Length (L)
24.00
mm
(Equiv. 0.945 in.) - Free Diameter
6.60
mm
(Equiv. 0.26 in.) - Thickness (S) 1.20 mm
- Chamfer Length (cL) 1.20-1.40 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A711
- NoCor SPMS-060-024-304SS
- SPMS060024304SS
- SRP624
- SRP6-24
