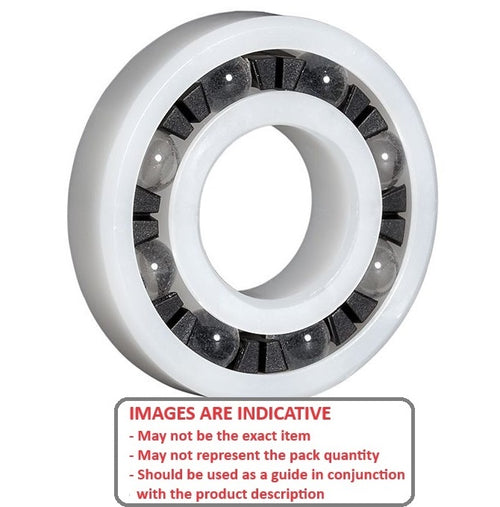

P-636-AGL - Datasheet
KMS
Category Information
Bearings - Plastic - Acetal - Single Row - Glass BallsGlass Balls Single Row Acetal Plastic Bearings. Bearings for Extreme Corrosion Resistance - Low Speed - Low Load.
- Plastic bearings, also known as polymer bearings, are bearings made from various types of plastics or polymer materials. Used in a wide range of applications across different industries where traditional metal bearings may not be suitable.
- These bearings offer unique advantages such as corrosion resistance, low friction, lightweight construction, and non-magnetic properties. Uses include Food and Beverage Industry, Medical and Laboratory Equipment, Chemical Industry,HVAC Systems.
- Plastic ball bearings do not use the same precision standards as those for precision ball bearings. An expanded range may be available on special order. Please enquire.
- Races made from Acetal - Balls made from Ground Glass - Cages from Acetal or Nylon.
- Lubrication - Water Lubrication or can be run dry - Must lubricate over 2500 RPM.
- Temperature Range - Minus 30 oC to 100 oC Continuous.
Product Data
- ID (d)
:
6.000
mm
+ 0.076 / - 0.000
(Equiv. 0.236 in.) - OD (D)
22.000
mm
+ 0.000 / - 0.076
(Equiv. 0.866 in.) - Width (B)
7.000
mm
+ 0.127 / - 0.000
(Equiv. 0.276 in.) - Max RPM in Air 1600
- Notes Unlubricated
- Type Radial
- Dynamic Load Rating 19.1 Kg
- Static Load Rating 15 Kg
- Material Acetal with Glass Balls
