PLIT-060-120-150-59-KPUN-S3F - Datasheet
MBA
Category Information
Plungers - Indexing Pull Knob - No Collar - Stainless - With NutWith Nut Stainless No Collar Indexing Pull Knob Plungers. This is the main category in this series
- Spring-loaded pin used to lock a part into a specific position.
- To use it, pull the handle or knob, which retracts the pin, allowing the part to be moved freely. When released the pin springs back into a hole, securing the part in its new position.

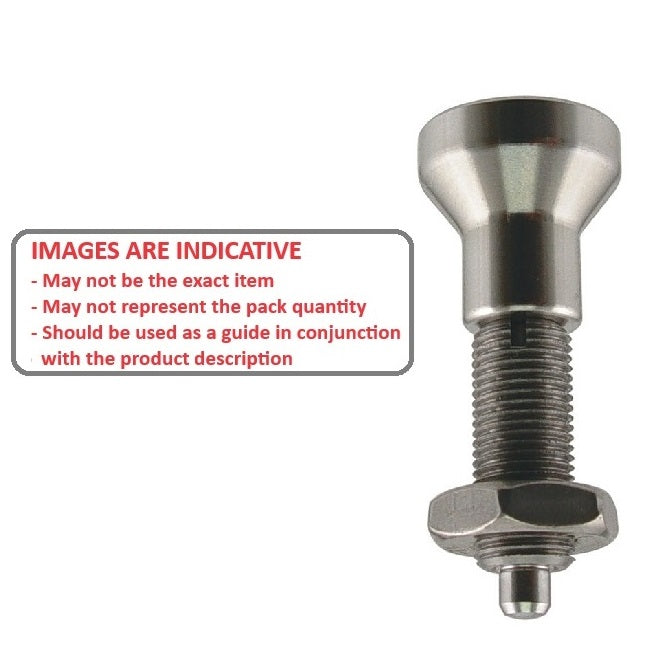

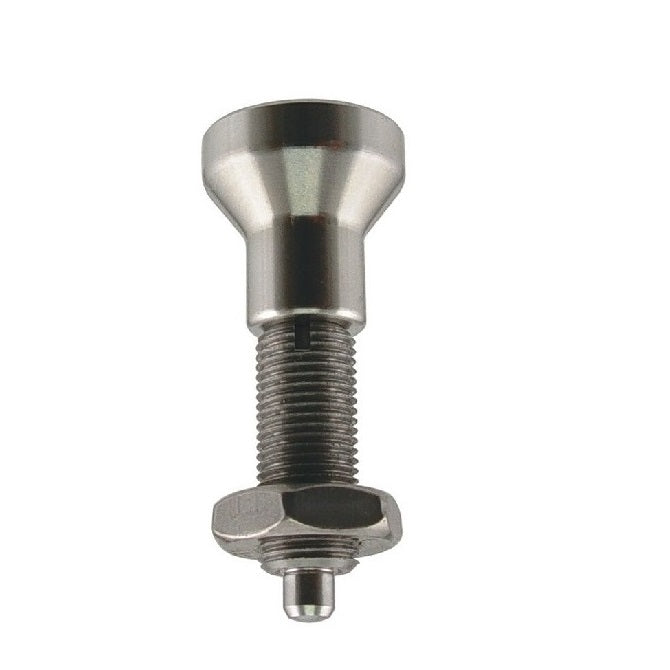

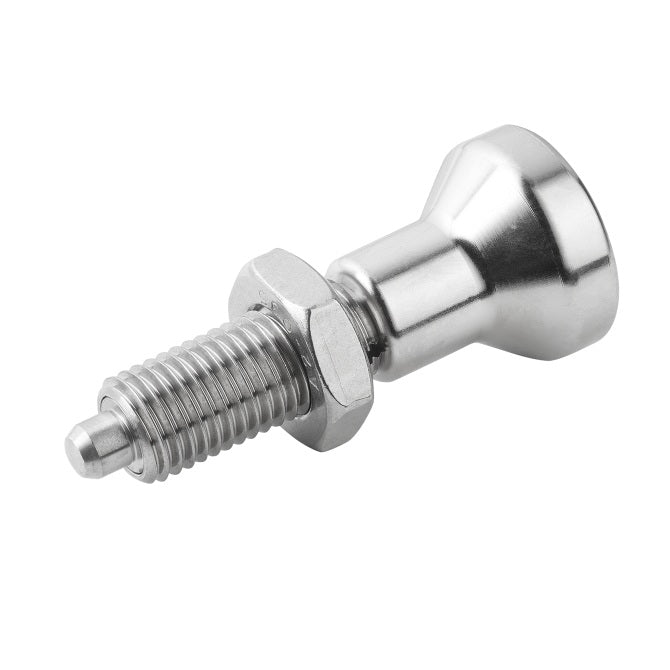

Product Data

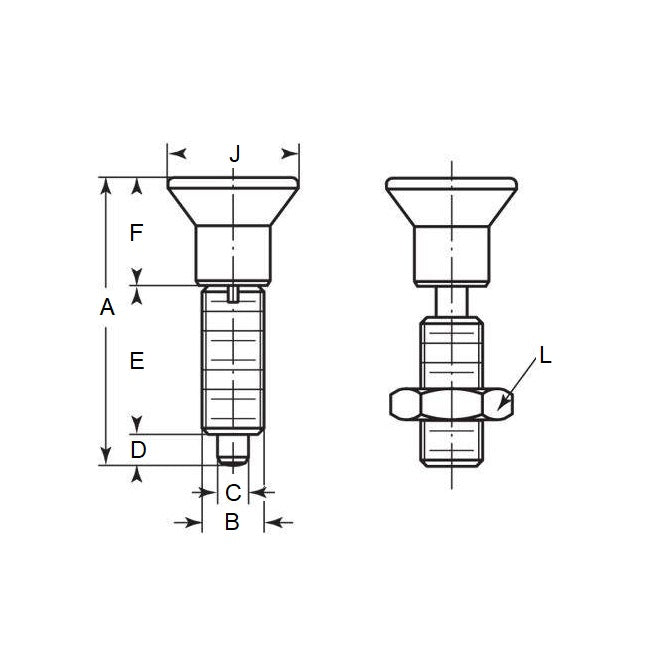

- Thread (B) : M12x1.5 (Fine)
- Overall Length (A) 59.0 mm
- Initial End Force 2.7 N
- Final End Force 6.4 N
- Tip Diameter (C) 6.0 mm
- Tip Length (D) 6.0 mm
- Hex Height (F) 25.0 mm
- Knob Diameter (J) 25.0 mm
- Nut Size (L) 19.0
- Material Stainless Steel 303 (Similar to A2 or 304 or 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® KBP-661
- KBP661
