PLIT-060-120-150-52-KPUN-C - Datasheet
MBA
Category Information

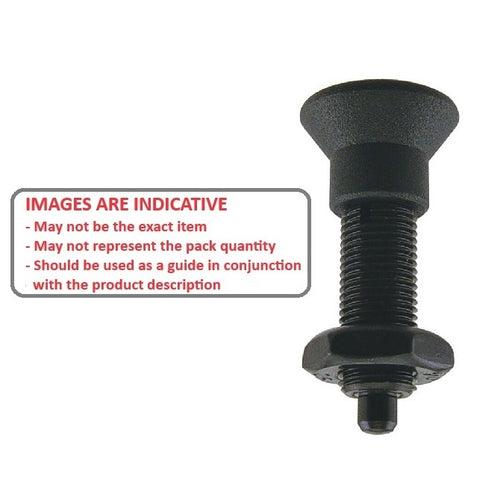

Plungers - Indexing Pull Knob - No Collar - Steel - With NutWith Nut Steel No Collar Indexing Pull Knob Plungers. With thermoplastic knob
- Spring-loaded pin used to lock a part into a specific position.
- To use it, pull the handle or knob, which retracts the pin, allowing the part to be moved freely. When released the pin springs back into a hole, securing the part in its new position.
Product Data

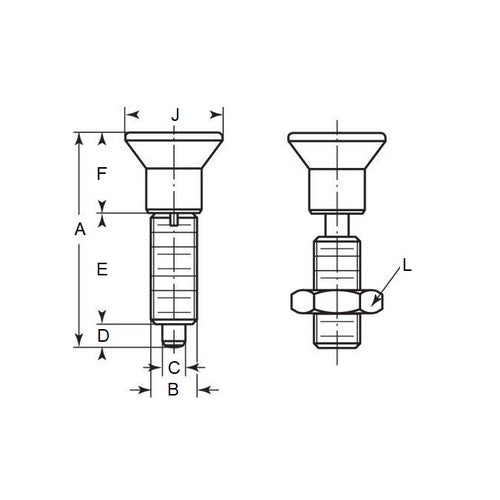

- Thread (B) : M12x1.5 (Fine)
- Overall Length (A)
51.7
mm
(Equiv. 2.035 in.) - Initial End Force 2.7 N
- Final End Force 6.4 N
- Tip Diameter (C) 6.0 mm
- Tip Length (D) 6.0 mm
- Hex Height (F) 17.7 mm
- Knob Diameter (J) 25.0 mm
- Hex Size (L) 19.0
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- KBP-642
- KBP642
