PLIT-060-120-150-52-KPN-S3 - Datasheet
MBA
Category Information

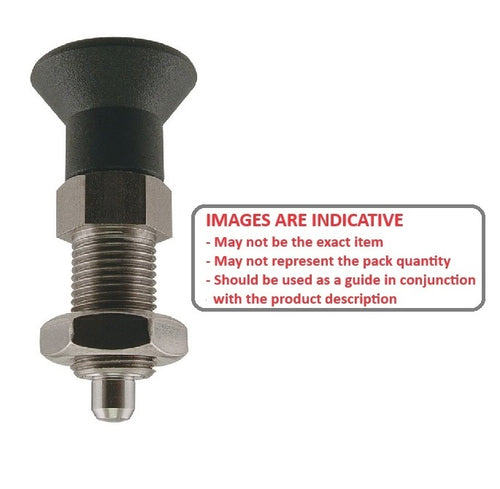

Plungers - Indexing Pull Knob - Stainless and Plastic - With NutWith Nut Stainless and Plastic Indexing Pull Knob Plungers. With thermoplastic knob
Product Data

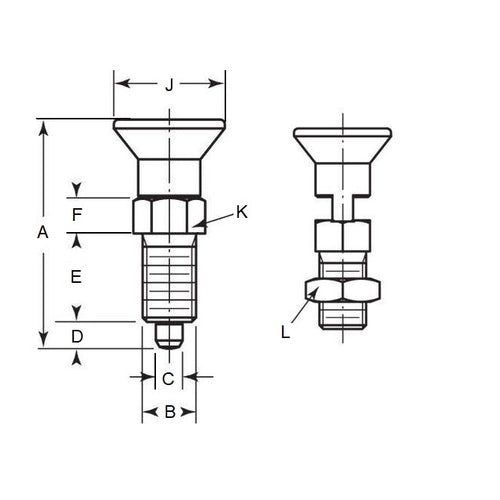

- Thread (B) : M12x1.5 (Fine)
- Overall Length (A)
51.7
mm
(Equiv. 2.035 in.) - Initial End Force 2.7 N
- Final End Force 6.4 N
- Tip Diameter (C) 6.0 mm
- Tip Length (D) 6.0 mm
- Knob Diameter (J) 25.0 mm
- Hex Size (K) 14.0 mm
- Nut Size (L) 19.0
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- KBP-535
- KBP535
