Miniature Bearings Australia
RP060-0160-C - Datasheet
MBA
Category Information

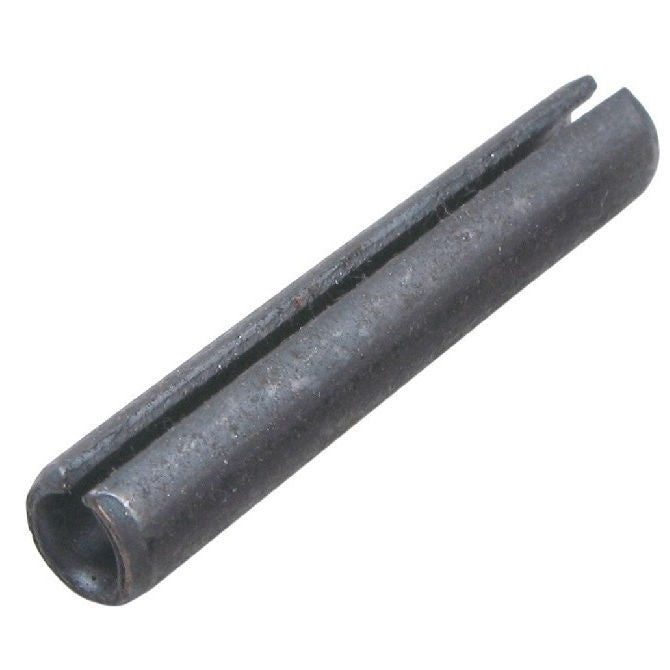

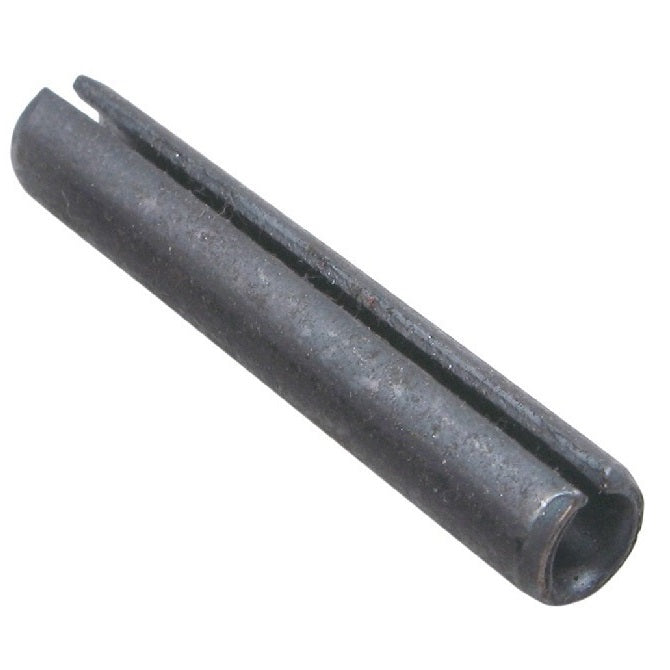

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
6.00
mm
(Equiv. 0.236 in.) - Length (L)
16.00
mm
(Equiv. 0.63 in.) - Free Diameter
6.60
mm
(Equiv. 0.26 in.) - Thickness (S) 1.20 mm
- Chamfer Length (cL) 1.20-1.40 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 802399
- 91611A403
- NoCor SPM-060-016
- NoCor SPM-060-016-I
- SAP6-16
- SAP616
- SPM060016
- SPM060016I
