Miniature Bearings Australia
GE-00600-01400-ST - Datasheet
MBA
Category Information

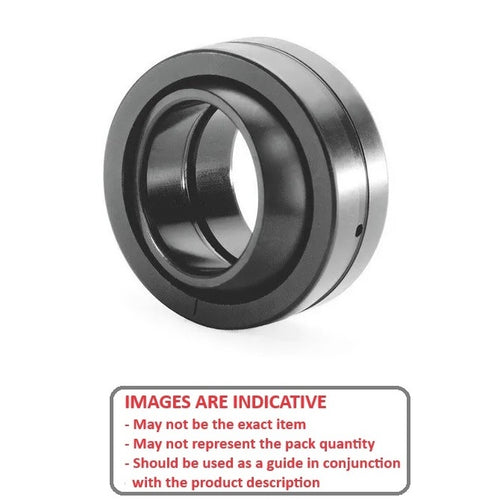

Bushings - Spherical - Steel - No Oil HoleNo Oil Hole Steel Spherical Bushings. Steel spherical plain bearings. Also known as ball bushings.
- Compensates for axial loads and misalignment.

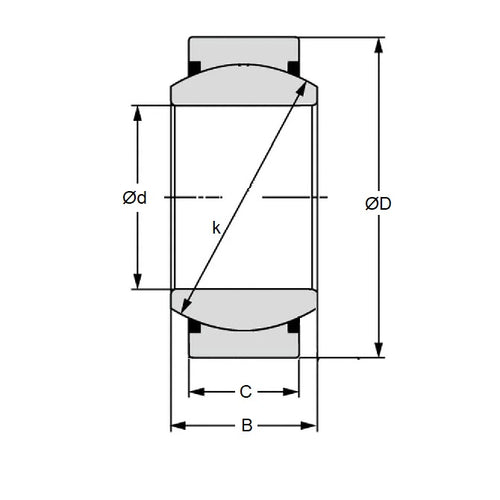

Product Data
- Bore (d1)
:
6.000
mm
(Equiv. 0.236 in.) - OD (d2)
14.000
mm
(Equiv. 0.551 in.) - Width (B)
6.000
mm
(Equiv. 0.236 in.) - Outer Width (C) 4.00 mm
- Dynamic Load Capacity 400 kgf
- Static Load Capacity 2400 kgf
- Features No Wiper Seals / No Oil Hole
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Nachi GE-6E
- IKO GE-6-E
- GE6E
