686B-ZZ-NR-ECO - Datasheet
ECO
Category Information

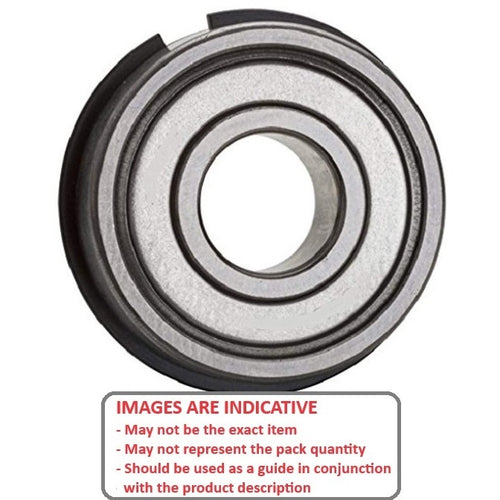

Bearings - Single Row Ball - with Snap Ring - Standard - Chrome SteelChrome Steel Standard with Snap Ring Single Row Ball Bearings. Chrome Steel Bearings with a Snap Ring on the OD
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with snap ring.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- ID (d)
:
6.000
mm
(Equiv. 0.236 in.) - OD (D)
13.000
mm
(Equiv. 0.512 in.) - Width (B)
5.000
mm

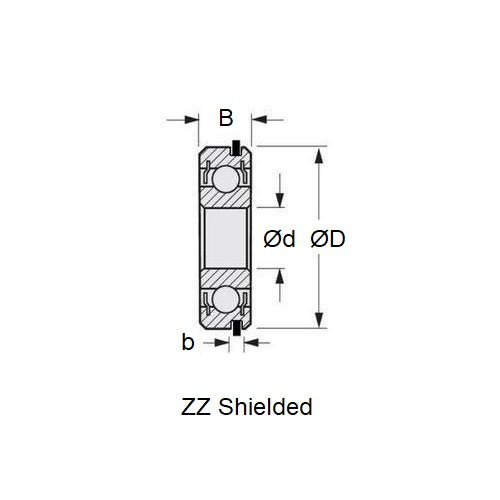

(Equiv. 0.197 in.) - Closure Type ZZ
- Bearing Type Radial with Snp Ring
- Snap Ring Thickness 0.550 mm
- Max. Dist. To Groove Edge 1.080 mm
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 686B
- Limiting Speed 38000
- Cage Type Standard
- Static Load Rating KGf 42.8
- Dynamic Load Rating KGf 104.5
- Radii 0.15 mm
- Inner Shoulder (UI) 7.40mm
- Outer Shoulder (UO) 11.70 mm
- Number of Balls 8
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZ
- Max Temperature 120 Deg. C
