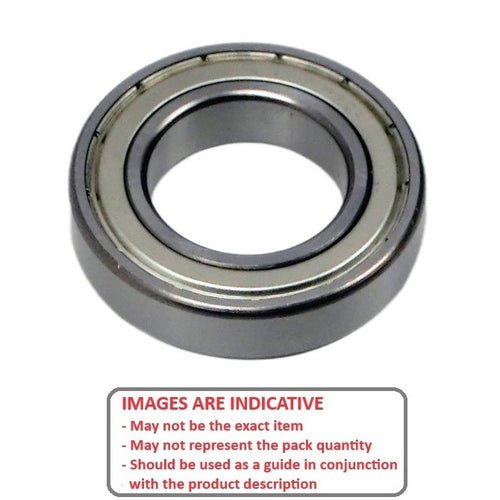

S686B-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

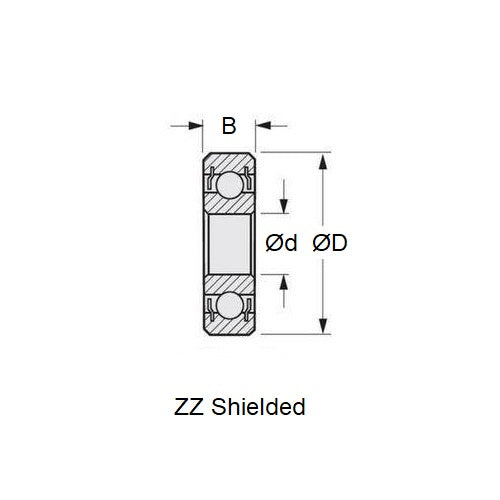

- ID (d)
:
6.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.236 in.) - OD (D)
13.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.512 in.) - Width (B)
5.000
mm
+ 0.000 / - 0.125
(Equiv. 0.197 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 686B
- Limiting Speed 40000
- Cage Type Ribbon
- Static Load Rating KGf 45
- Dynamic Load Rating KGf 110
- Radii 0.15 mm
- Inner Shoulder (UI) 7.40mm
- Outer Shoulder (UO) 11.70 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Helicopter Parts
- Century - Hawk II - Bearing
- Hirobo - Sceadu 30 Evolution - Bearing
- Hirobo - Sceadu 50 Evolution - Bearing
- Kyosho - CALIBER 30 - Bearing
- Schluter - Eolo Pro - Bearing
- Schluter - Eolo R22 - Bearing
- Schluter - Eolo Spirit Pro - Bearing
- Schluter - Spirit Pro - Bearing
- Thunder Tiger - Raptor 50 SE - 50
- Thunder Tiger - Raptor 50 SE Complete Kit - 50
- Thunder Tiger - Raptor 50 Titan - Bearing
- Thunder Tiger - Raptor 50 V2 - Double Shielded Bearing 6-13-5mm
- Thunder Tiger - Raptor 60 V2 - Bearing 6-13-5mm
Cross References
- Stainless 686BZZMC3
- Stainless 686B-ZZ-MC3
- 7804K113
- GRW S686-2Z
- NTN SS686-ZZ
- MPB SUL60CHH
- SHIMANO TGT0500
- Similar Part W628-6
- ADR W628-6-ZZ
- W6286
- W6286ZZ
- SSL1360-ZZ
- SS-L1360-ZZ
- SSL1360ZZ
- SS686ZZ
- DDL1360ZZ
- DD-L1360-ZZ
- DMB74
- DDL1360-ZZ
- DMB-74
- ULZ613X
- S6862Z
- S686B-ZZMC3
- S686BZZMC3
- S686SS
- 686B Basic Size Ref
