Miniature Bearings Australia

MR126A-ZZS-ECO - Datasheet

ECO

Category Information

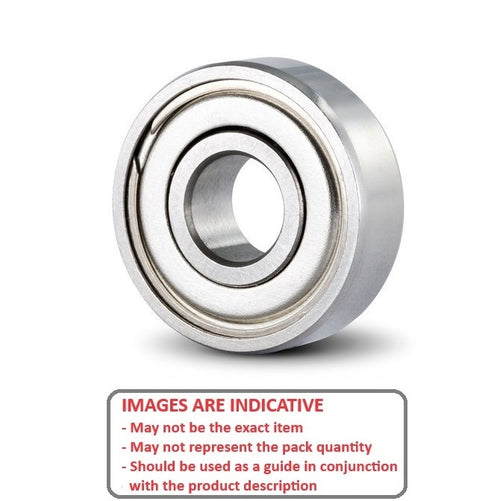

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

ID (d) : 6.000 mm
(Equiv. 0.236 in.)
OD (D) 12.000 mm
(Equiv. 0.472 in.)
Width (B) 4.000 mm
(Equiv. 0.157 in.)
Precision Grade Economy
Closure Type ZZS
Bearing Type Radial
Material Chrome Steel SAE 52100

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part MR126A
Limiting Speed 40850
Cage Type Standard
Static Load Rating KGf 28.5
Dynamic Load Rating KGf 69.4
Radii 0.20 mm
Inner Shoulder (UI) 7.20mm
Outer Shoulder (UO) 10.90 mm
Number of Balls 8
Clearance ECO (5 to 23)
Precision Grade ECO
Closure Type ZZS
Max Temperature 120 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Car Parts
RC Helicopter Parts
Academy and MRC - Desert Thunder - Bearing 6-12-4mm
Academy and MRC - Nitro Thunder King - Bearing 6-12-4mm
Academy and MRC - Thunder King - Bearing 6-12-4mm
Academy and MRC - Thunder King Desert Thunder Baja King - Bearing 6-12-4mm
Academy and MRC - Thunder King Large Rear Wheels - Bearing 6-12-4mm
Academy and MRC - ThunderKing Larger Rear Wheel - Bearing 6-12-4mm
Associated - MGT4.60SE - Bearing 6-12-4mm
Associated - Monster GT Truck and RTR Nitro Off Road - Bearing 6-12-4mm
Duratrax - Delphi Indy Car - Bearing 6-12-4mm
Duratrax - Overdrive ST - Bearing 6-12-4mm
Duratrax - Quake Nitro - Bearing 6-12-4mm
Duratrax - Thunder Quake - Bearing 6-12-4mm
Kyosho - ATV - Bearing 6-12-4mm
Kyosho - Evolva - Bearing 6-12-4mm
Kyosho - Evolva 2005 - Bearing 6-12-4mm
Kyosho - F1 FW-04 With GS-15R - Bearing 6-12-4mm
Kyosho - F1 Impress - Bearing 6-12-4mm
Kyosho - Fantom 2001 - Bearing 6-12-4mm
Kyosho - FW-05 Foam Tyre Special Chassis - Bearing 6-12-4mm
Kyosho - FW-05R - Bearing 6-12-4mm
Kyosho - FW-05R INDIV. Upgrade - Bearing 6-12-4mm
Kyosho - Giga Crusher - Bearing 6-12-4mm
Kyosho - Giga Crusher SF - Bearing 6-12-4mm
Kyosho - Half 8 Mini Inferno - Bearing 6-12-4mm
Kyosho - Heavy Metal Tank - Bearing 6-12-4mm
Kyosho - Mad Armour - Bearing 6-12-4mm
Kyosho - Mad Force RTR - Bearing 6-12-4mm
Kyosho - Mclaren BMW - Bearing 6-12-4mm
Kyosho - Super Ten FW-04 - Bearing 6-12-4mm
Kyosho - Twin Force -Motor Truck - Bearing 6-12-4mm
Kyosho - V-One RR - Bearing 6-12-4mm
Kyosho - V-One RR Evolution - Bearing 6-12-4mm
Kyosho - V-One RRR - Bearing 6-12-4mm
Kyosho - V-One S 2 Speed - Bearing 6-12-4mm
Losi - Aftershock Monster Truck RTR LOSB0012 - Bearing 6-12-4mm
Losi - LST Super Truck LOSB0010 - Bearing 6-12-4mm
Losi - Monster Truck LST2 LOSB0015 - Bearing 6-12-4mm
RD Logistics - Mongoose - Bearing 6-12-4mm
Schumaker - Fusion R12 - Bearing 6-12-4mm
Tamiya - 415MSX - Bearing 6-12-4mm
Tamiya - 911 GTI 1-8 Gas - Bearing 6-12-4mm
Tamiya - Acura Complete - Bearing 6-12-4mm
Tamiya - Alfa Romeo - Bearing 6-12-4mm
Tamiya - AMG Merceded C-Class - Bearing 6-12-4mm
Tamiya - AMG Merceded C-Class D1 - Bearing 6-12-4mm
Tamiya - AMG Merceded C-Class D2 - Bearing 6-12-4mm
Tamiya - Blitz - Bearing 6-12-4mm
Tamiya - BMW 318 SI - Bearing 6-12-4mm
Tamiya - Bullhead - Bearing 6-12-4mm
Tamiya - Castro - Bearing 6-12-4mm
Tamiya - Celica - Bearing 6-12-4mm
Tamiya - DTM-D2 - Bearing 6-12-4mm
Tamiya - F Pro - Bearing 6-12-4mm
Tamiya - F1 - Bearing 6-12-4mm
Tamiya - F201 Complete Kit - Bearing 6-12-4mm
Tamiya - F201 Outdrive Only - Bearing 6-12-4mm
Tamiya - Ferrari F189 - Bearing 6-12-4mm
Tamiya - Ford F-350 Highlift - Bearing 6-12-4mm
Tamiya - Globe Liner - Bearing 6-12-4mm
Tamiya - Honda Civic FWD - Bearing 6-12-4mm
Tamiya - Honda CRV - Bearing 6-12-4mm
Tamiya - Jacos Mugen - Bearing 6-12-4mm
Tamiya - Jacos Mugen Civic FWD - Bearing 6-12-4mm
Tamiya - Jaguar Complete - Bearing 6-12-4mm
Tamiya - Jeep Wrangler - Bearing 6-12-4mm
Tamiya - Juggernaut - Bearing 6-12-4mm
Tamiya - Juggernaut 2 - Bearing 6-12-4mm
Tamiya - King Hauler - Bearing 6-12-4mm
Tamiya - King Hauler Glove Liner - Bearing 6-12-4mm
Tamiya - Levin FWD - Bearing 6-12-4mm
Tamiya - Lexus GS400 Upgrade - Bearing 6-12-4mm
Tamiya - Merceded 1/8 Gas - Bearing 6-12-4mm
Tamiya - Merceded C11 Complete - Bearing 6-12-4mm
Tamiya - Merceded CLK - DTM AMG 2002 - Bearing 6-12-4mm
Tamiya - Mitsubishi Pajero - Bearing 6-12-4mm
Tamiya - Mitsubishi XB Pajero - Bearing 6-12-4mm
Tamiya - Mitsubishi XB Pajero Rally SPO - Bearing 6-12-4mm
Tamiya - New Beetle - Bearing 6-12-4mm
Tamiya - New Super Beetle Upgrade - Bearing 6-12-4mm
Tamiya - Nissan 300ZX - Bearing 6-12-4mm
Tamiya - Nissan 300ZX - Merceded BENZ C11 F1 - Bearing 6-12-4mm
Tamiya - Opel Calibra - Bearing 6-12-4mm
Tamiya - Pajero - Bearing 6-12-4mm
Tamiya - Porsche Taisin - Bearing 6-12-4mm
Tamiya - Renault Clio Williams - Bearing 6-12-4mm
Tamiya - Supra Grand National - Bearing 6-12-4mm
Tamiya - TA02 Chassis - Bearing 6-12-4mm
Tamiya - TA03 - TA03F Chassis Belt Drive - Wheel Bearings Outer
Tamiya - TA03R - Bearing 6-12-4mm
Tamiya - TA03R - Wheel Bearings Outer
Tamiya - TAO-3 Series - Bearing 6-12-4mm
Tamiya - TB Evolution III - Bearing 6-12-4mm
Tamiya - TB Evolution IV 4Evo 4 - Bearing 6-12-4mm
Tamiya - TB-01 - Bearing 6-12-4mm
Tamiya - Terra Crusher - Bearing 6-12-4mm
Tamiya - TG10 MK1 Upgrade - Bearing 6-12-4mm
Tamiya - TGR - Bearing 6-12-4mm
Tamiya - TGX - Bearing 6-12-4mm
Tamiya - TGX-MK1 1/8 Gas - Bearing 6-12-4mm
Tamiya - TNX Nitro With Steering - Bearing 6-12-4mm
Tamiya - TOA-3R Series - Bearing 6-12-4mm
Tamiya - Toyota - Bearing 6-12-4mm
Tamiya - Toyota Blitz TA02 - Bearing 6-12-4mm
Tamiya - Toyota Castrol Celica FF02 - Bearing 6-12-4mm
Tamiya - TXT-1 Truck - Bearing 6-12-4mm
Tamiya - Volkswagon Racer Complete - Bearing 6-12-4mm
Tamiya - Volkswagon Racer-Touareg - Bearing 6-12-4mm
Tamiya - Volvo 850 - Bearing 6-12-4mm
Team Magic - G4S - Bearing 6-12-4mm
Traxxas - E-Maxx - Bearing 6-12-4mm
Traxxas - E-Maxx 4WD RTR - Bearing 6-12-4mm
Traxxas - Revo - Bearing 6-12-4mm
Traxxas - S-Maxx Stadium Max RTR - Bearing 6-12-4mm
Traxxas - Sport Maxx - Bearing 6-12-4mm
Traxxas - T- Maxx 3.3 - Bearing 6-12-4mm
Traxxas - T-Maxx 2.5 With Additional Trans - Bearing 6-12-4mm
Traxxas - T-Maxx 4WD RTR - Bearing 6-12-4mm
Traxxas - T-Maxx 4WD RTR With Additional T - Bearing 6-12-4mm
Traxxas - T-Maxx All - Bearing 6-12-4mm
Traxxas - T-Maxx With Additional Trans. BR - Bearing 6-12-4mm
Trinity - G4 Nitro Touring Car-E Class - Bearing 6-12-4mm
Trinity - Mongoose - Bearing 6-12-4mm
Trinity - Reflex NT 1/10 Scale - Bearing 6-12-4mm
Trinity - Reflex NT Nitro With Clutch Bell - Bearing 6-12-4mm
Trinity - Reflex NT Without Clutch Bell - Bearing 6-12-4mm
Venom Racing - Mini Giant RTR 4WD - Bearing 6-12-4mm
Yokomo - GT-4 RTR - Bearing 6-12-4mm
Yokomo - GT-4 RTR-II - Bearing 6-12-4mm
Yokomo - GT-4R - Bearing 6-12-4mm
Yokomo - GT-4W - Bearing 6-12-4mm
Yokomo - GT-4W2L - Bearing 6-12-4mm
Gaui - Hurricane 550 - 550 Bearing 6-12-3mm
Thunder Tiger - Raptor 50 SE - 50
Thunder Tiger - Raptor 50 SE Complete Kit - 50
Thunder Tiger - Raptor 50 V2 - Double Shielded Bearing 6-12-4mm

Cross References

TAMIYA BA22
Similar Part MR126A-ZZ-ECO
TAMIYA MR4
MR126A Basic Size Ref
