FMR126A-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.

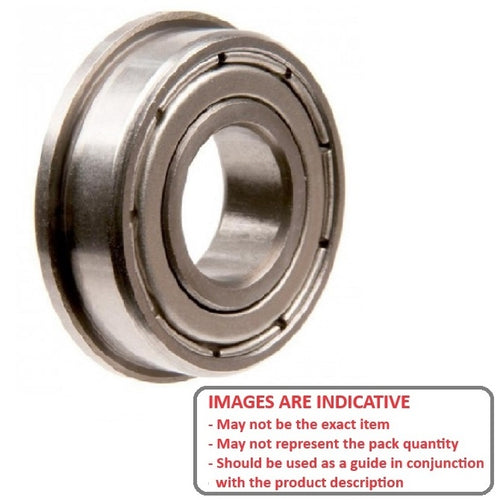

- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

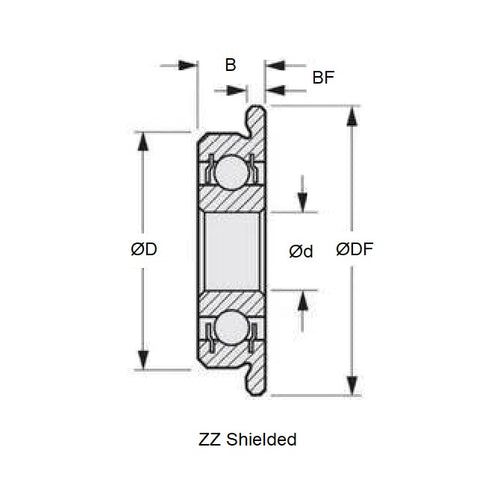

- ID (d)
:
6.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.236 in.) - OD (D)
12.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.472 in.) - Width (B)
4.000
mm
+ 0.000 / - 0.125
(Equiv. 0.157 in.) - Flange Diameter (DF) 13.600 mm
- Flange Width (BF) 0.800 mm
- Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FMR126A
- Limiting Speed 43000
- Cage Type Standard
- Static Load Rating KGf 30
- Dynamic Load Rating KGf 73
- Radii 0.20 mm
- Inner Shoulder (UI) 7.20mm
- Outer Shoulder (UO) 10.90 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- HIROBO 2500-033
- 57155K586
- GMP 9558
- Nachi F6M12-ZZ
- NTN FLAWBC6-12-ZZA
- Shielded Width A FMR126/4
- Shielded FMR126A / 4
- ADR FX6-ZZ
- BSC MLF6012-ZZ
- MF126-ZZ
- MLF6012ZZ
- MF126ZZ
- FX6ZZ
- FMR126A-ZZMC3
- FMR126AZZMC3
- 2500033
- F6M12ZZ
- FLAWBC612ZZA
- LF1260-ZZ
- LF1260ZZ
- FMR126A Basic Size Ref
