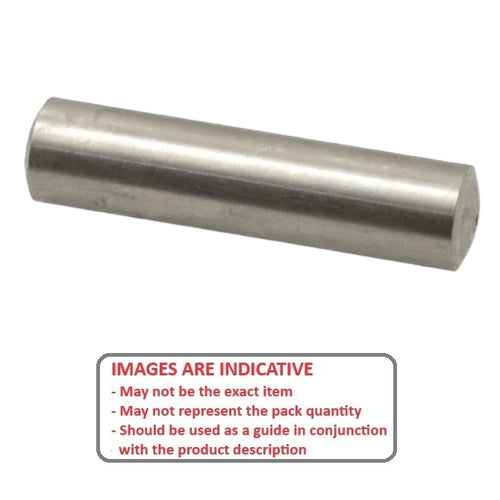

DP060-012-C-3 - Datasheet
NoCor
Category Information
Pins - Dowel - Standard - Rounded Ends - Unhardened SteelUnhardened Steel Rounded Ends Standard Dowel Pins. Precision Dowel Pins - Based on DIN7
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Rounded end dowel pins are measured from the start of the edge rounding. This allows the pin to completely fill the hole after you grind off the rounded end.
- Diameter tolerances are m6 unless otherwise listed
Product Data
- Diameter (D)
:
6.000
mm
+ 0.006 / + 0.015
(Equiv. 0.236 in.) - Length (L)
12.00
mm
+/- 0.350
(Equiv. 0.472 in.) - Approx. Overall Length
13.80
mm
+/ - 0.350
(Equiv. 0.543 in.) - Type 3 (Rounded Ends)
- Standard Based on DIN 7
- Material Carbon Steel Unhardened
Product Compliance and Data
Additional Resources
Cross References
- NoCor DOWM-060-012
- DOWM060012
