OW-0060-0100-0080-RXNY-S440 - Datasheet

MBA

Category Information

Bearings - One Way - Roller

Roller One Way Bearings. Roller Clutch Bearings rotate in one direction only.

  • One way bearings, also known as clutch bearings, or non-reversing bearings, allow rotation in a single direction.
  • Commonly used in over-runnung, or backstopping applications.
  • The unidirectional operation allows these bearings to play a crucial role in various mechanical systems where controlled rotation, overrunning protection, backstopping, indexing, or intermittent motion is required.
  • Recommended Shaft Diameter for Clutch Bearings without Inner Ring is +0.000 / -0.005 mm.

Product Data

  • ID (d) : 6.000 mm
    (Equiv. 0.236 in.)
  • OD (D) 10.000 mm
    (Equiv. 0.394 in.)
  • Width (B) 8.000 mm
    (Equiv. 0.315 in.)
  • Overrun Limiting Speed Not Listed RPM
  • Type Drawn Cup Hex Shaped OD
  • Bearings Material 440C Stainless Steel
  • Max Torque Not Listed N.m
  • Cage Material Nylon
  • Material Stainless Steel AISI 440C
Country of Origin: TW

Product Compliance and Data

Additional Resources

    Applications & Uses

    • RC Car Parts
    • Kyosho - Super 10 - 1 Way Roller Clutch Bearing

    Cross References

    • BOCA S-EWC0608
    • SEWC0608
    View full details

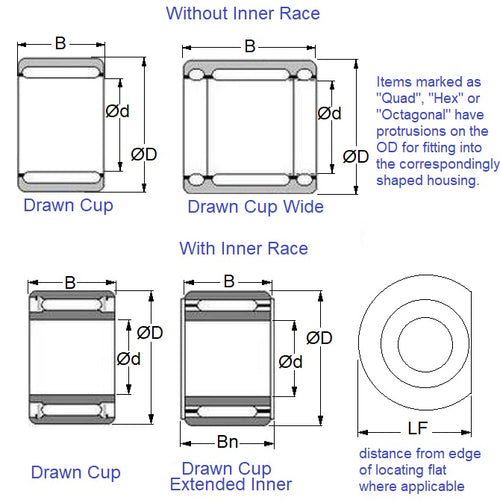

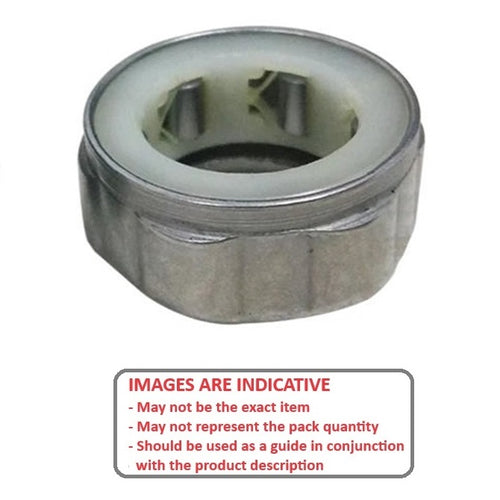

    OW-0060-0100-0080-RXNY-S440DiagramOW-0060-0100-0080-RXNY-S440Image
