MR106A-ZZS-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Standard single row radial ball bearings.

Product Data

  • ID (d) : 6.000 mm
  • O.D. (D) 10.000 mm
  • Width (B) 3.000 mm
  • Precision Grade Economy
  • Closure Type ZZS
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part MR106A
  • Limiting Speed 42750
  • Cage Type Standard
  • Static Load Rating KGf 20.9
  • Dynamic Load Rating KGf 48.4
  • Radii 0.15 mm
  • Inner Shoulder (UI) 7.04mm
  • Outer Shoulder (UO) 9.30 mm
  • Number of Balls 10
  • Clearance ECO (5 to 23)
  • Precision Grade ECO
  • Closure Type ZZS
  • Max Temperature 120 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Car Parts
  • RC Helicopter Parts
  • Academy® & MRC® - SP-3 Extreme 1/2 Scale EP - Bearing 6-10-3mm
  • Academy® & MRC® - SP-3 Matiz 1/12 Scale - Bearing 6-10-3mm
  • Academy® & MRC® - SP-3 X - Bearing 6-10-3mm
  • A-Tech® - XMB4 Buggy - Bearing 6-10-3mm
  • A-Tech® - XMT-4 Truck - Bearing 6-10-3mm
  • CEN - Genesis 46 RTR Chasis 1/8 Scale - Bearing 6-10-3mm
  • CEN - Matrix - Bearing 6-10-3mm
  • Cox® - Bandito - Ultra Stock - Bearing 6-10-3mm
  • Cox® - Tomahawk - Bearing 6-10-3mm
  • Duratrax® - Micro Street Force RTR - Bearing 6-10-3mm
  • Duratrax® - Mini Quake - Bearing 6-10-3mm
  • Duratrax® - Mini Quake SE - Bearing 6-10-3mm
  • Duratrax® - Vendett ST Truck - Bearing 6-10-3mm
  • GS General Silicone - Storm Pro Gas - Bearing 6-10-3mm
  • GS General Silicone - Storm Unlimited Truck SUT-RTR - Bearing 6-10-3mm
  • Hobao® - Hyper 8 - Bearing 6-10-3mm
  • Hobao® - Hyper E ST Truggy - Bearing 6-10-3mm
  • Hot Bodies® - Lightning 2 - Bearing 6-10-3mm
  • Hot Bodies® - Lightning 2 Pro - Bearing 6-10-3mm
  • Hot Bodies® - Lightning 2 RR - Bearing 6-10-3mm
  • Hot Bodies® - Lightning Pro With O Radio - Bearing 6-10-3mm
  • Hot Bodies® - Lightning RR Truggy RTR 1/10 - Bearing 6-10-3mm
  • Hot Bodies® - Lightning Stadium Pro - Bearing 6-10-3mm
  • Hot Bodies® - Lightning Stadium RTR - Bearing 6-10-3mm
  • Hot Bodies® - Lightning Street 1/7 RTR - Bearing 6-10-3mm
  • HPI - Hellfire - Bearing 6-10-3mm
  • HPI - Micro RS4 - Bearing 6-10-3mm
  • HPI - Micro RS4 Complete With Upgrade - Bearing 6-10-3mm
  • HPI - Micro RS4 RTR 4WD - Bearing 6-10-3mm
  • HPI - R40 - Bearing 6-10-3mm
  • HPI - R40 With Clutch Bell And Steering - Bearing 6-10-3mm
  • Kyosho® - ATV - Bearing 6-10-3mm
  • Kyosho® - Benitone B192 - Bearing 6-10-3mm
  • Kyosho® - Evolva - Bearing 6-10-3mm
  • Kyosho® - Evolva 2005 - Bearing 6-10-3mm
  • Kyosho® - F1 Impress - Bearing 6-10-3mm
  • Kyosho® - Ferrari F92A - Bearing 6-10-3mm
  • Kyosho® - Formula 1 Benitone B192 - Bearing 6-10-3mm
  • Kyosho® - Formula 1 Ferrari F92A - Bearing 6-10-3mm
  • Kyosho® - Formula 1 Jordan Yam - Bearing 6-10-3mm
  • Kyosho® - Formula 1 Williams - Bearing 6-10-3mm
  • Kyosho® - Formula 1 Williams FW14 - Bearing 6-10-3mm
  • Kyosho® - FW14 Jordan Yam - Bearing 6-10-3mm
  • Kyosho® - Gallop MK-II - Bearing 6-10-3mm
  • Kyosho® - Giga Crusher - Bearing 6-10-3mm
  • Kyosho® - Giga Crusher SF - Bearing 6-10-3mm
  • Kyosho® - Honda CRX - Bearing 6-10-3mm
  • Kyosho® - Indy Scotch - Bearing 6-10-3mm
  • Kyosho® - Inferno ST-R - Bearing 6-10-3mm
  • Kyosho® - Inferno Truggy - Bearing 6-10-3mm
  • Kyosho® - MP 7.5 - Bearing 6-10-3mm
  • Kyosho® - MP 7.5 Kanai 2 Inferno - Bearing 6-10-3mm
  • Kyosho® - MP 7.5 Kanai 2 Pro-Sports - Bearing 6-10-3mm
  • Kyosho® - MP 7.5 Kanai 3 Inferno - Bearing 6-10-3mm
  • Kyosho® - MP 7.5 Kanai Inferno - Bearing 6-10-3mm
  • Kyosho® - MP 7.5 Sports Inferno - Bearing 6-10-3mm
  • Kyosho® - MP 777 Inferno - Bearing 6-10-3mm
  • Kyosho® - MP 777 SP1 Inferno - Bearing 6-10-3mm
  • Kyosho® - MP 777 SP2 - Bearing 6-10-3mm
  • Kyosho® - MP 777 ST-R Truggy - Bearing 6-10-3mm
  • Kyosho® - MP-6 International - Bearing 6-10-3mm
  • Kyosho® - Outlaw Rampage 1/10 Gas - Bearing 6-10-3mm
  • Kyosho® - Outlaw RMPG 1/10 Gas. - Bearing 6-10-3mm
  • Kyosho® - Outrage ST - Bearing 6-10-3mm
  • Kyosho® - ProX and Trans - Bearing 6-10-3mm
  • Kyosho® - Quad Rider EV - Bearing 6-10-3mm
  • Kyosho® - Rampage Sport 31324 - Bearing 6-10-3mm
  • Kyosho® - SR5 Truck - Bearing 6-10-3mm
  • Kyosho® - Twin Force -Motor Truck - Bearing 6-10-3mm
  • Kyosho® - Vanning - Bearing 6-10-3mm
  • Kyosho® - V-One RR Evolution - Bearing 6-10-3mm
  • Kyosho® - V-One RRR - Bearing 6-10-3mm
  • Kyosho® - V-One S 2 Speed - Bearing 6-10-3mm
  • MSR - X5T - Bearing 6-10-3mm
  • Mugen® - Athlete Upgrade - Bearing 6-10-3mm
  • Mugen® - Athlete Upgrade Kit - Bearing 6-10-3mm
  • Mugen® - MBX-4XR - Bearing 6-10-3mm
  • Mugen® - MBX-5 - Bearing 6-10-3mm
  • Mugen® - MBX-5 Prospect - Bearing 6-10-3mm
  • Mugen® - MBX-5 T - Bearing 6-10-3mm
  • Mugen® - MBX-RR - Bearing 6-10-3mm
  • Mugen® - MBX-XR Works - Bearing 6-10-3mm
  • Mugen® - MRX-3 1/8 Scale - Bearing 6-10-3mm
  • Mugen® - MRX-4 - Bearing 6-10-3mm
  • Mugen® - MRX-4R - Bearing 6-10-3mm
  • Mugen® - Seiki MBX-4RR - Bearing 6-10-3mm
  • NEO - 1-8 Gas - Bearing 6-10-3mm
  • Ofna® - Hyper 7 Pro - Bearing 6-10-3mm
  • Ofna® - Jammin - Bearing 6-10-3mm
  • Ofna® - Jammin 1 CR - Bearing 6-10-3mm
  • Ofna® - Jammin 1 CR With Steering - Bearing 6-10-3mm
  • RD Logistics - Mongoose - Bearing 6-10-3mm
  • Robitronics® - Scalpel Pro 1/8 - Bearing 6-10-3mm
  • Serpent® - 950R With STE Ten and Front Wheel UP - Bearing 6-10-3mm
  • Serpent® - 950R With Steering and Tensioner - Bearing 6-10-3mm
  • Serpent® - 960 FD - Bearing 6-10-3mm
  • Serpent® - Freedom T1 - Bearing 6-10-3mm
  • Serpent® - Sprint 6000 Gas - Bearing 6-10-3mm
  • Sport Werks® - Mayhem Pro - Bearing 6-10-3mm
  • Sport Werks® - Mayhem RTR - Bearing 6-10-3mm
  • Tamiya® - Stadium Racer - Bearing 6-10-3mm
  • Tamiya® - Stadium Racer Complete Kit - Bearing 6-10-3mm
  • Tamiya® - TB Evolution IV 4Evo 4 - Bearing 6-10-3mm
  • Tamiya® - TB-02 - Bearing 6-10-3mm
  • Tamiya® - Terra Crusher - Bearing 6-10-3mm
  • Team Associated® - MGT4.60SE - Bearing 6-10-3mm
  • Team Associated® - Monster GT Truck and RTR Nitro Off Road - Bearing 6-10-3mm
  • Team Losi® - 1-8 Scale Buggy with clutch bell - Bearing 6-10-3mm
  • Team Losi® - Aftershock Monster Truck RTR LOSB0012 - Bearing 6-10-3mm
  • Team Losi® - Eight-T - Bearing 6-10-3mm
  • Team Losi® - LST Super Truck LOSB0010 - Bearing 6-10-3mm
  • Team Losi® - Monster Truck LST2 LOSB0015 - Bearing 6-10-3mm
  • Team Losi® - Muggy - Bearing 6-10-3mm
  • Team Magic® - G4S - Bearing 6-10-3mm
  • Trinity® - G4 Nitro Touring Car-E Class - Bearing 6-10-3mm
  • Trinity® - Mongoose - Bearing 6-10-3mm
  • Trinity® - Reflex NT 1/10 Scale - Bearing 6-10-3mm
  • Trinity® - Reflex NT Nitro With Clutch Bell - Bearing 6-10-3mm
  • Trinity® - Reflex NT Without Clutch Bell - Bearing 6-10-3mm
  • Xray® - FK5 Electric - Bearing 6-10-3mm
  • Xray® - M18 - Bearing 6-10-3mm
  • Xray® - M18 Upgrade Option - Bearing 6-10-3mm
  • Xray® - M18T - Bearing 6-10-3mm
  • Xray® - NT-18 - Bearing 6-10-3mm
  • Xray® - T1 - Bearing 6-10-3mm
  • Xray® - T1 Evo 2 - Bearing 6-10-3mm
  • Xray® - T1 Factory Kit - Bearing 6-10-3mm
  • Xray® - T1 FK 05 Complete - Bearing 6-10-3mm
  • Xray® - T1 Racer - Bearing 6-10-3mm
  • Xray® - T1M Mini - Bearing 6-10-3mm
  • Xray® - X Ray - Bearing 6-10-3mm
  • Xray® - XB8 Nitro - Bearing 6-10-3mm
  • Xray® - XB8R - Bearing 6-10-3mm
  • Xray® - XB8-TQ - Bearing 6-10-3mm
  • XTM Racing - Mammoth Massive Appeal RTR - Bearing 6-10-3mm
  • XTM Racing - Nitro Mammoth RTR - Bearing 6-10-3mm
  • Yokomo® - MR-4 Rally - Bearing 6-10-3mm
  • Yokomo® - MR-4BC Special - Bearing 6-10-3mm
  • Yokomo® - MR-4MT - Bearing 6-10-3mm
  • Yokomo® - MR-4TC - Bearing 6-10-3mm
  • Yokomo® - MR-4TC BD - Bearing 6-10-3mm
  • Yokomo® - MR-4TC Custom - Bearing 6-10-3mm
  • Yokomo® - MR-4TC SD CGM - Bearing 6-10-3mm
  • Yokomo® - MR-4TC SD CM Drift Package - Bearing 6-10-3mm
  • Yokomo® - MR-4TC SD SSG /Black - Bearing 6-10-3mm
  • Yokomo® - MR-4TC SP - Bearing 6-10-3mm
  • Yokomo® - MR-4TC With Bell Crank Steering - Bearing 6-10-3mm
  • Yokomo® - MX4 - Bearing 6-10-3mm
  • Yokomo® - MX4 - Hub Carriers Front and Rear Bearing
  • Bergen Machine® - Intrepid 60 - Bearing 6-10-3mm
  • Century® - Falcon 46 - Bearing 6-10-3mm
  • Century® - Falcon 46 Upgrade Kit - Bearing 6-10-3mm
  • Century® - Falcon 46/50 SE II - Bearing 6-10-3mm
  • Century® - Hawk II - Bearing 6-10-3mm
  • Century® - Hawk II Upgrade Kit - Bearing 6-10-3mm
  • Century® - Hawk Sport All - Bearing 6-10-3mm
  • Century® - Ninja Pro® 30/46 All - Bearing 6-10-3mm
  • Century® - Ninja Pro® 30-46 - Bearing 6-10-3mm
  • Century® - Phoenix 52-4-C - Bearing 6-10-3mm
  • Century® - Phoenix 52-4-C Upgrade Kit - Bearing 6-10-3mm
  • Century® - Predator Gas SE Complete - Bearing 6-10-3mm
  • Century® - Predator Gasser Complete - Bearing 6-10-3mm
  • Century® - Raven 30-50 - Bearing 6-10-3mm
  • Gaui® - Hurricane 550 - 550 Bearing 6-10-3mm
  • Hirobo® - Lepton EX - Bearing 6-10-3mm
  • Hirobo® - Sceadu 50 Evolution - Bearing 6-10-3mm
  • Hirobo® - Shuttle - Upgrade Kit Bearing 2
  • Hirobo® - Shuttle Challenge Upgrade Kit - Bearing 6-10-3mm
  • Hirobo® - Shuttle Plus - 60
  • Hirobo® - Shuttle Z - 2500-054 Bearing
  • Hirobo® - Shuttle Z - Bearing 6-10-3mm
  • Hirobo® - Shuttle ZX - 2500-054 Bearing
  • Hirobo® - Shuttle ZX - Bearing 6-10-3mm
  • Hirobo® - Shuttle ZX-0402 Upgrade Kit - Bearing 6-10-3mm
  • Hirobo® - Shuttle ZXX - 2500-054 Bearing
  • Hirobo® - Shuttle ZXX - Bearing 6-10-3mm
  • Hirobo® - Tsurgi - 2500-054 Bearing
  • Hirobo® - ZTS Upgrade Kit - Bearing 6-10-3mm
  • Kyosho® - CALIBER 30 - Bearing 6-10-3mm
  • Kyosho® - CONCEPT 30 DX - Bearing 6-10-3mm
  • Kyosho® - CONCEPT 30 SE - Bearing 6-10-3mm
  • Kyosho® - CONCEPT 30 SR-T - Bearing 6-10-3mm
  • Kyosho® - CONCEPT 30 SX - Bearing 6-10-3mm
  • Kyosho® - CONCEPT 30-DX - 88 Bearing
  • Kyosho® - CONCEPT 30-SE - 88 Bearing
  • Kyosho® - CONCEPT 30-SX - 88 Bearing
  • Kyosho® - CONCEPT 60 - 105 Bearing
  • Kyosho® - CONCEPT 60 - Bearing 6-10-3mm
  • Kyosho® - CONCEPT 60 R - 105 Bearing
  • Kyosho® - CONCEPT 60 SR - Bearing 6-10-3mm
  • Kyosho® - NEXUS 30 - Bearing 6-10-3mm
  • MS Composit - Hornet Micro Heli - Bearing 6-10-3mm
  • Schluter® - Futura - 3325 Bearing
  • Schluter® - Magic - 3325 Bearing
  • Schluter® - Magic - Bearing 6-10-3mm
  • Thunder Tiger® - Raptor 30 Complete Kit - 30
  • Thunder Tiger® - Raptor 50 SE - 50
  • Thunder Tiger® - Raptor 50 SE Complete Kit - 50
  • Thunder Tiger® - Raptor 50 Titan - Bearing 6-10-3mm
  • Thunder Tiger® - Raptor 50 V2 - Double Shielded Bearing 6-10-3mm
  • Thunder Tiger® - Raptor 60 V2 - Double Shielded Bearing 6-10-3mm
  • Thunder Tiger® - Raptor 90 SE - Double Shielded Bearing 6-10-3mm

Cross References

  • HIROBO 0402-123 KIT
  • Misumi® C-E676ZZ
  • Similar Part MR106A-ZZ-ECO
  • 0402123 KIT
  • MR106A-Z-ECO
  • MR106AZECO
  • CE676ZZ
  • MR106A Basic Size Ref
View full details

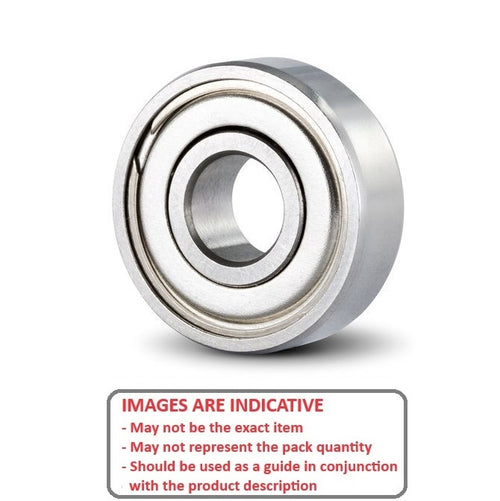

MR106A-ZZS-ECODiagramMR106A-ZZS-ECOImage
