SFMR106-MC3-AF12 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

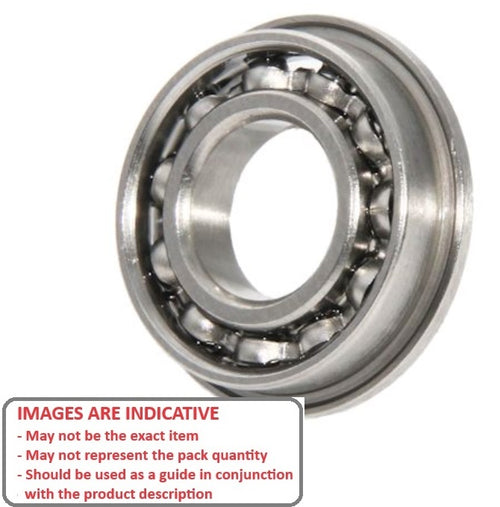

440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Single row radial ball bearings with flanges.
  • Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.

Product Data

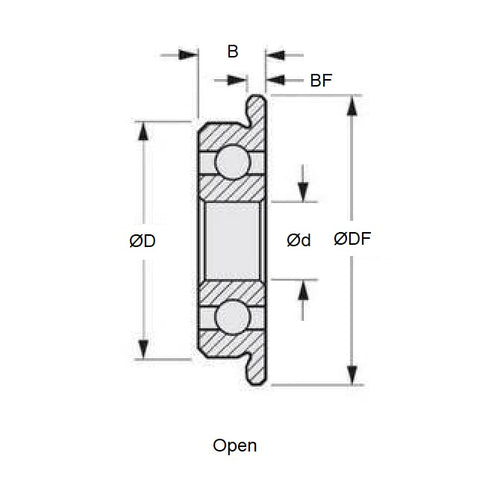

  • ID (d) : 6.000 mm + 0.000 / - 0.0075
    (Equiv. 0.236 in.)
  • OD (D) 10.000 mm + 0.000 / - 0.0075
    (Equiv. 0.394 in.)
  • Width (B) 2.500 mm + 0.000 / - 0.125
    (Equiv. 0.098 in.)
  • Flange Diameter (DF) 11.200 mm
  • Flange Width (BF) 0.600 mm
  • Precision Grade Abec 1
  • Closure Type Open
  • Bearing Type Radial Flanged
  • Material Stainless Steel AISI 440C
  • Lubrication Type Oil
  • Lubrication Name AF12 Aeroshell Fluid 12
  • Basic Part FMR106
  • Limiting Speed 53000
  • Cage Type Standard
  • Static Load Rating KGf 22
  • Dynamic Load Rating KGf 51
  • Radii 0.15 mm
  • Inner Shoulder (UI) 7.04mm
  • Outer Shoulder (UO) 8.90 mm
  • Number of Balls 10
  • Clearance MC3 (5 to 10)
  • Precision Grade Abec 1
  • Closure Type Open
  • Max Temperature 120 Deg. C
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 57155K473
  • Stainless Alternative FMR106MC3AF12
  • Stainless Alternative FMR106-MC3-AF12
  • Similar Part SMF106
  • ADR WF617-6
  • Similar Part WF617-6
  • WF6176
  • SS-LF1060
  • SSLF1060
  • DDLF1060
  • DD-LF1060
  • FMR106 Basic Size Ref
