PLIT-060-160-150-16-G-C-N - Datasheet

MBA

Category Information

Plungers - Indexing - Grip - Steel - With Nut

With Nut Steel Grip Indexing Plungers. Grip is held in a notch in the fully retracted position. In this position the locking pin does not project from the body at all.

    Product Data

    • Thread (B) : M16 Extra Fine (16x1.5mm)
    • Thread Length (F) 32.0 mm
      (Equiv. 1.26 in.)
    • Initial End Force 0.6 N
    • Final End Force 1.5 N
    • Tip Diameter (A) 6.0 mm
    • Tip Length (E) 10.0 mm
    • H 24.0
    • Handle Length (G) 40.0 mm
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP757
      • KBP-757
      View full details

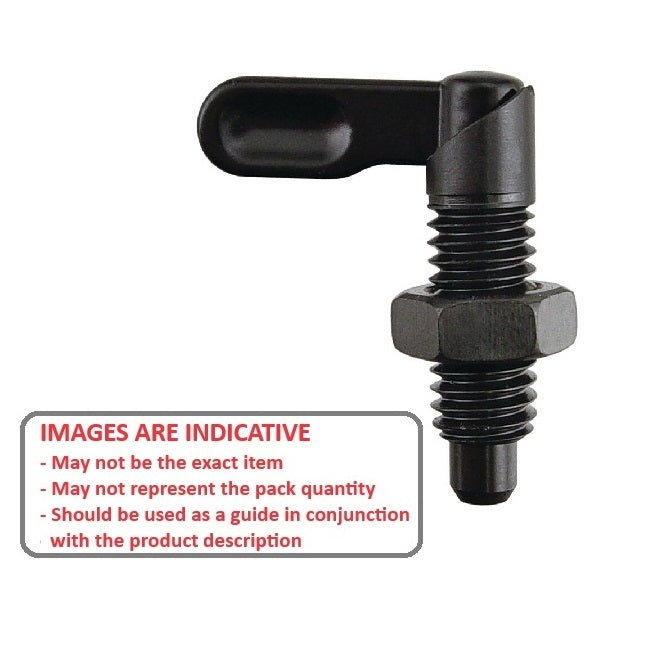

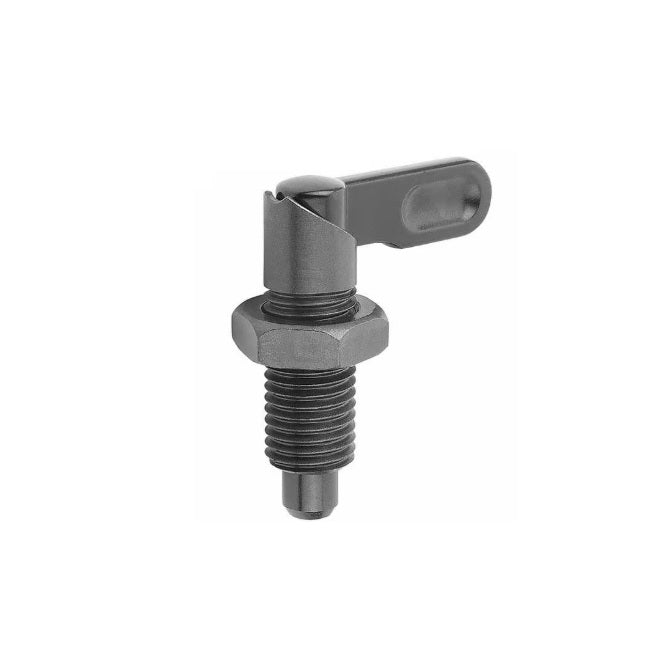

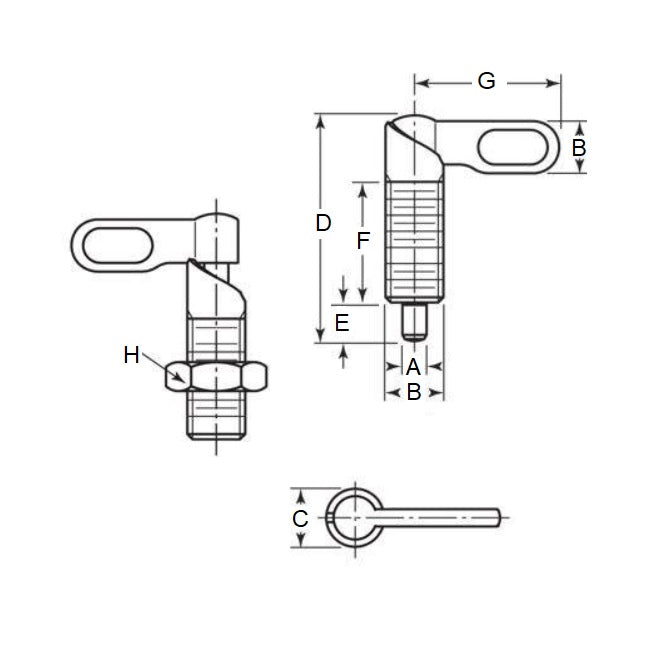

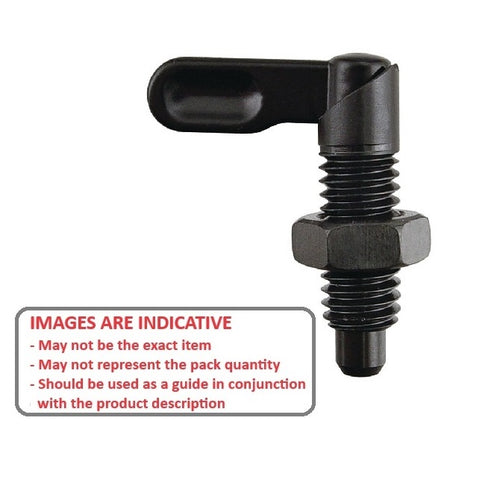

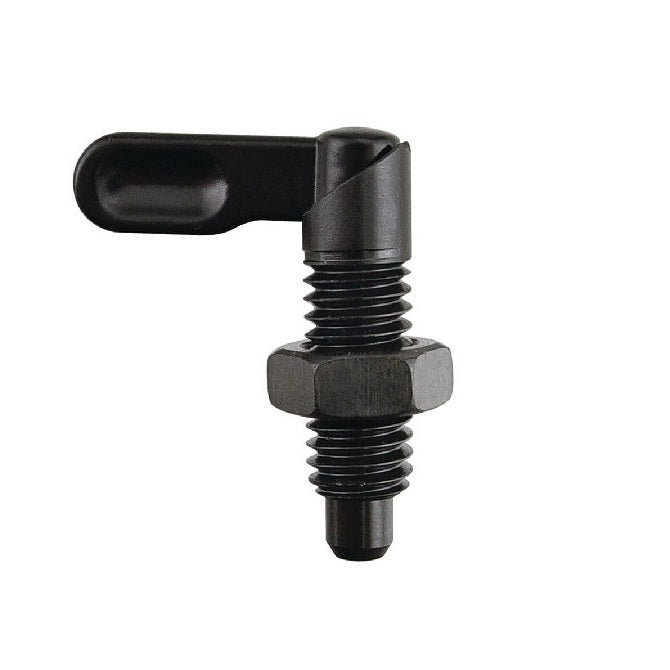

      PLIT-060-160-150-16-G-C-NDiagramPLIT-060-160-150-16-G-C-NImage
