Miniature Bearings Australia
SC028B-019-R-SL-BN - Datasheet
MBA
Category Information

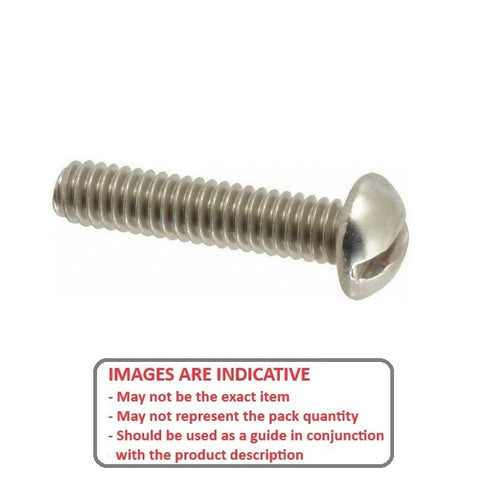

Screws - Round Head - Steel - SlottedSlotted Steel Round Head Screws. Metal Thread Screws. Metric and BSW only. Supplied with nut.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 6BA (2.794mm)
- Thread Length (L)
19.1
mm
(Equiv. 0.752 in.) - Material Nickel Plated Brass
- Max Head Diameter 4.93 mm
- Max Head Height 1.98 mm
- Type Round / Slotted
- Pitch 0.530 mm
- Threads Per Inch 47.93 TPI
- Material Nickel Plated Brass
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
