MSM-240M-108-CNPRP - Datasheet
MBA
Category Information

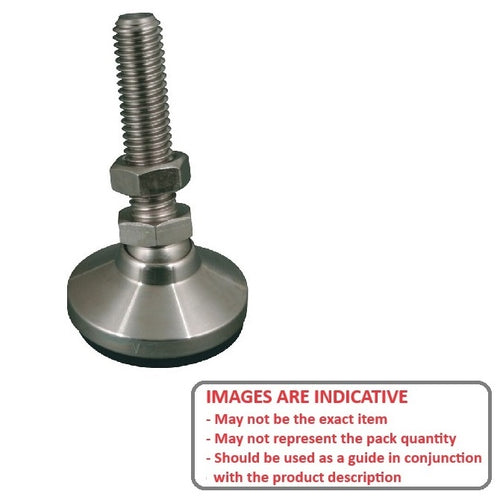

Mounts - Levelling Studded - Swivel - Plated - Rubber PaddedRubber Padded Plated Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M24 (24x3mm)
- Base Diameter (D)
102.0
mm
(Equiv. 4.016 in.) - Foot Height (C)
51.0
mm
(Equiv. 2.008 in.) - Thread Length (F) 108.0 mm
- Base Height (E) 14.00 mm
- Overall Height 159.0 mm
- Load Rating 6800 Kg
- Finish Nickel Plated
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 35.000 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSM6800M24LNPR
- MLP350
- MLP-350
