MCUP-0068-076 - Datasheet
MBA
Category Information

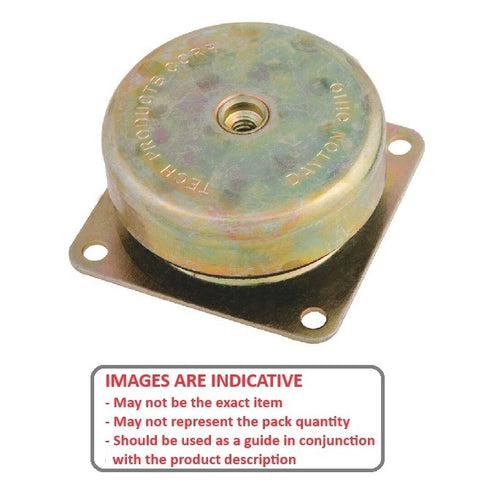

Mounts - Cup IndustrialCup Industrial Mounts. Protect against severe impact shock with efficient vibration isolation characteristics at frequencies above 40Hz.
- Can be mounted in any orientation for protection of sensitive electronic, electrical and mechanical equipment from high impact shocks.
Product Data
- Load Rating : 68.0 Kg

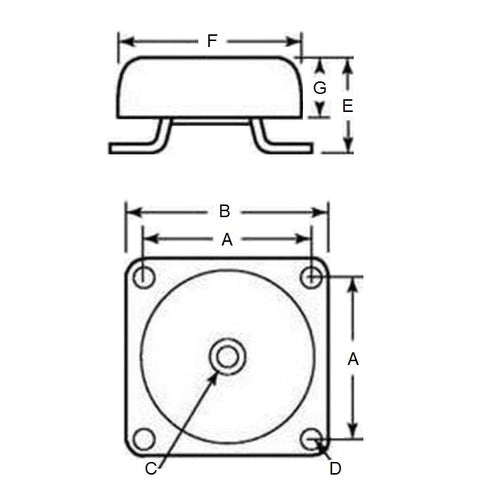

- Length (B)
76.200
mm
(Equiv. 3 in.) - Thread 3/8-16 UNC (9.53mm)
- Approx. Overall Height (E) 38.100 mm
- Mount Diameter (F) 76.200 mm
- Mount Height (G) 25.400 mm
- Bolt Centres (A) 63.500 mm
- Bolt Holes (D) 6.756 mm
Product Compliance and Data
Additional Resources
Cross References
- BCM2060
- BCM-2060
