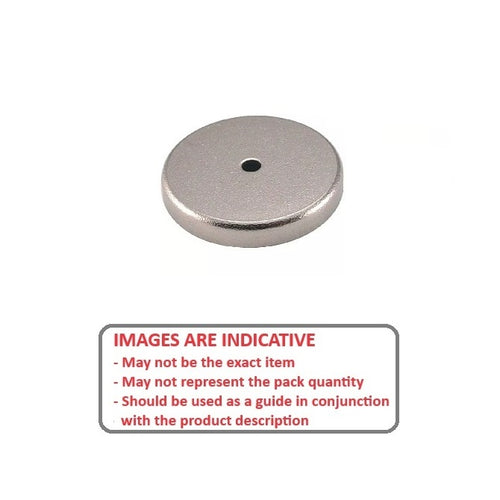

MAG-CP-067-10-25-H - Datasheet

MBA

Category Information

Magnets - Cup Assemblies Through Hole

Cup Assemblies Through Hole Magnets. This is the main category in this series

    Product Data

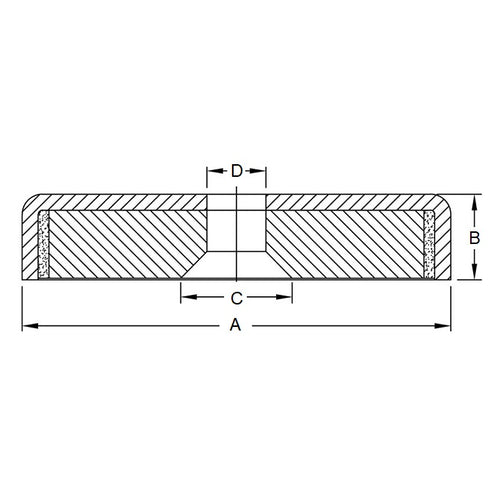

    • Diameter (A) : 66.80 mm
      (Equiv. 2.63 in.)
    • Thickness (B) 9.53 mm
      (Equiv. 0.375 in.)
    • Hole Recess (C) 25.40 mm
      (Equiv. 1 in.)
    • Hole Top Diameter (D) 7.14 mm
    • Holding Value 37 Kg
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • IM-44
      • IM44
