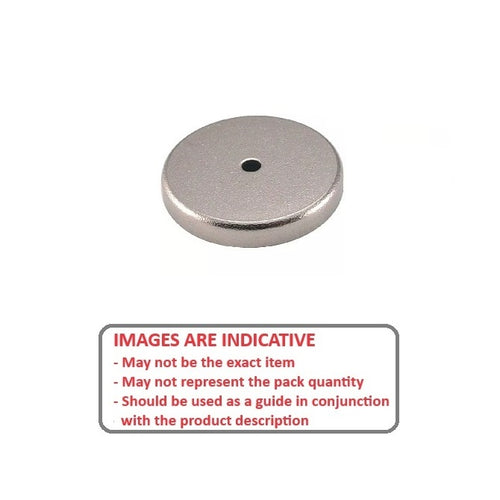

MAG-CP-067-10-16-H - Datasheet
MBA
Category Information
Magnets - Cup Assemblies Through HoleCup Assemblies Through Hole Magnets. This is the main category in this series
Product Data

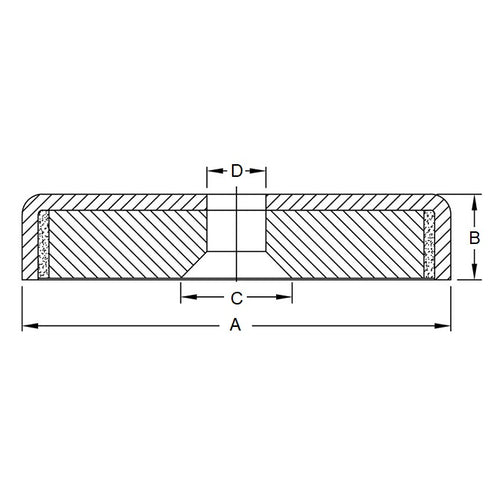

- Diameter (A)
:
66.80
mm
(Equiv. 2.63 in.) - Thickness (B)
9.53
mm
(Equiv. 0.375 in.) - Hole Recess (C)
15.88
mm
(Equiv. 0.625 in.) - Hole Top Diameter (D) 6.35 mm
- Holding Value 93 Kg
Product Compliance and Data
Additional Resources
Cross References
- IM335
- IM-335
