MAG-CP-067-10-03-SD - Datasheet

MBA

Category Information

Magnets - Cup Assemblies Stud

Cup Assemblies Stud Magnets. This is the main category in this series

    Product Data

    • Diameter (A) : 66.68 mm
      (Equiv. 2.625 in.)
    • Thickness (B) 9.53 mm
      (Equiv. 0.375 in.)
    • Thread Size 3/8-16 UNC
    • Thread Length 26.99 mm
    • Holding Value 90.72 kg
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • IM-336
      • IM336
      View full details

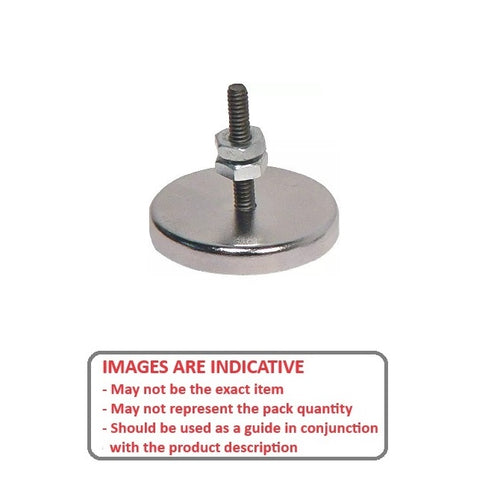

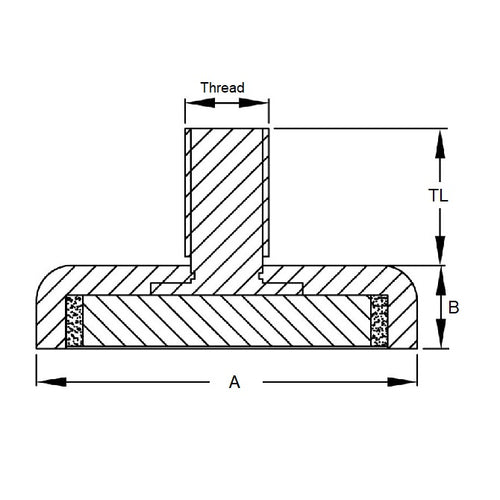

      MAG-CP-067-10-03-SDDiagramMAG-CP-067-10-03-SDImage
