MAG-CP-067-10-01-SD - Datasheet

MBA

Category Information

Magnets - Cup Assemblies Stud

Cup Assemblies Stud Magnets. This is the main category in this series

    Product Data

    • Diameter (A) : 66.68 mm
      (Equiv. 2.625 in.)
    • Thickness (B) 9.53 mm
      (Equiv. 0.375 in.)
    • Thread Size 1/4-20 UNC
    • Thread Length 44.45 mm
    • Holding Value 37.19 kg
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • IM-56
      • IM56
      View full details

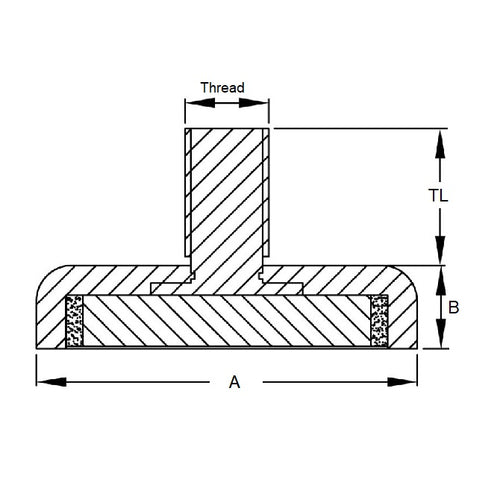

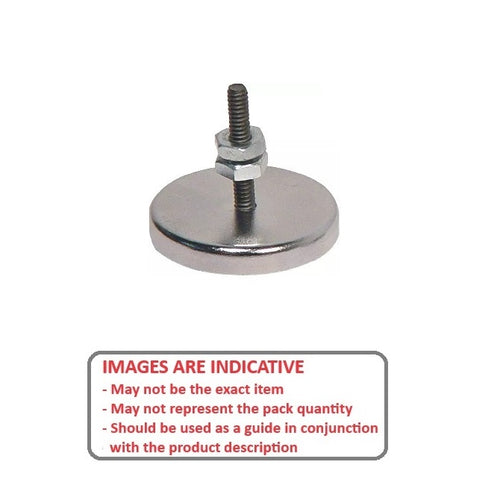

      MAG-CP-067-10-01-SDDiagramMAG-CP-067-10-01-SDImage
